Centre hung heavy duty top pivot with power transfer cable
$2,785.74 incl GST
Description
The Assa Abloy Rixson EH340 door pivot is a top pivot assembly with a hole through the centre to allow a power cable to pass through, useful when hardwired electronic mortice locks are to be used.
Note:
Specify 4 – 6 8 or 12 wire cable.
Completely concealed when the door is closed.
Heavy-duty needle bearing.
Lead times are listed under additional information.
Standard Finish: Satinless Steel
Additional information
Assa Abloy
Imported to order item, therefore this pivot is NON RETURNABLE
Allow 25 working days

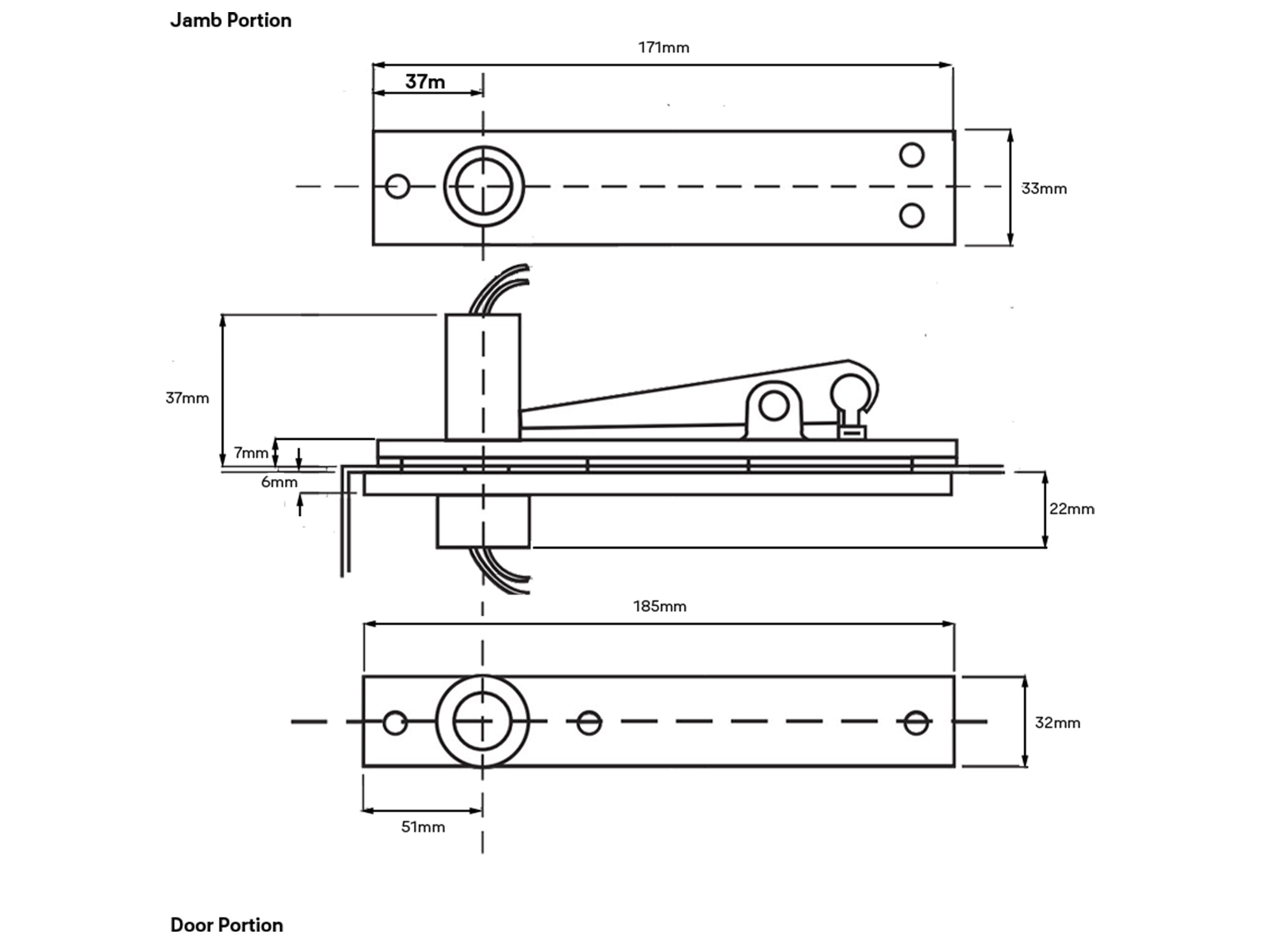

Assa Abloy Rixson EH340 Dimensions
DownloadAssa Abloy Rixson EH340 Template
DownloadQR Code
