Unlike conventional door stops, the Fantom Magnetic Doorstop incorporating Fantom technology poses no trip hazard due to its innovative flush finish and non-protruding pin. The striker plate is fitted underneath the door, meaning there is no hardware on display and all moving parts are hidden underneath the door and in the floor. Installation kits available (9609).
Note:
Not suitable for doors with clearances exceeding 15mm under the door.
5mm Packer is available that can be installed between door and striker plate, to bring door with 20mm clearance down to acceptable depth.
Use caution if installing with underfloor heating (confirm before drilling hole).
13mm is the recommended height. It will still work fine at 15mm, however the activation speed worsens the higher you go.
Not recommended for use in wet areas, as pins can corrode.
We recommend applying a silicon or light oil to the top of the plastic tip which makes stops lighter to open.
Fantom Magnetic Pop Up Floor Stop
$31.76 – $60.70 incl GST
Description
Unlike conventional door stops, the Fantom Magnetic Doorstop incorporating Fantom technology poses no trip hazard due to its innovative flush finish and non-protruding pin. The striker plate is fitted underneath the door, meaning there is no hardware on display and all moving parts are hidden underneath the door and in the floor. Installation kits available (9609).
Note:
Not suitable for doors with clearances exceeding 15mm under the door.
5mm Packer is available that can be installed between door and striker plate, to bring door with 20mm clearance down to acceptable depth.
Use caution if installing with underfloor heating (confirm before drilling hole).
13mm is the recommended height. It will still work fine at 15mm, however the activation speed worsens the higher you go.
Not recommended for use in wet areas, as pins can corrode.
We recommend applying a silicon or light oil to the top of the plastic tip which makes stops lighter to open.
Lead times under additional information.
Finish: Clear, Black, Chrome Plate
Additional information
Fantom Stop
F9606 Clear, F9607 Black, F9608 Chrome Plate, F9609 ACCESSORY FIXING KIT
28mm
13.3mm
43mm
80mm x 33mm
24mm
22mm
14mm
13mm is our recommended height. It will still work fine at 15mm, however the activation speed worsens the higher you go
Fantom Door Stop Spec Sheet

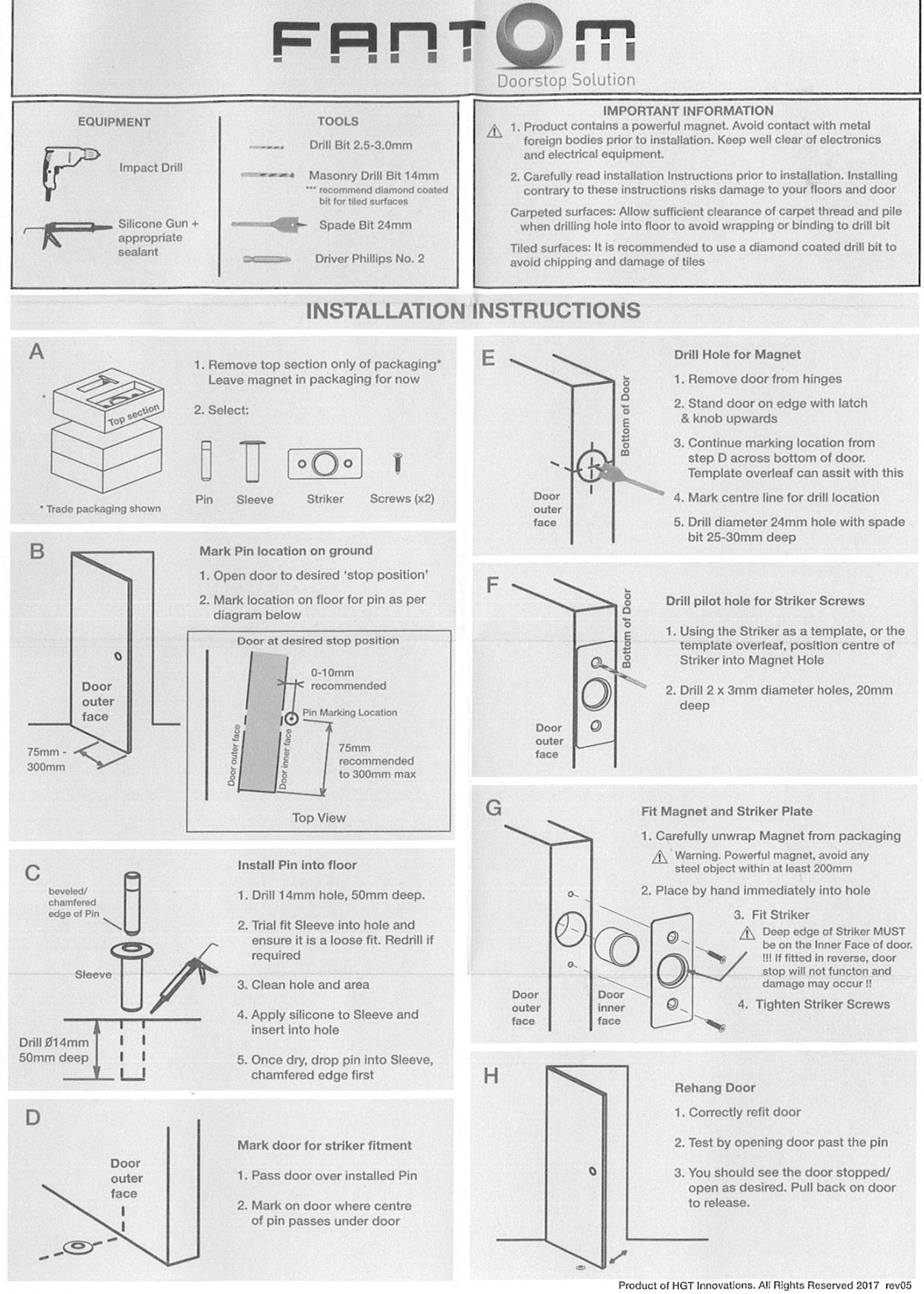

DownloadPhantom Installation Instructions
DownloadFantom Catalogue 2023
DownloadQR Code
