Description
The patented small ANSI footprint, FES10 Series Electric Strikes are designed for light commercial and residential applications. They accept voltages of either 12 or 24VDC, are fire tested up to a 4 hour fire resistance rating to both Australian and British Fire Test Standards.
The strikes are easily site-interchangeable Power To Lock (PTL) or Power To Release (PTR) by simply changing over the Barbell mechanism. The device is pre-drilled to cater for extension lips, come with a 5 year warranty and have a holding strength of up to 1300kg. The FES10M version comes with Door Status Sensor (door latch monitoring). The FES10 version is weather resistant IP56 rated.
Note:
Stainless steel faceplate and keeper
Patented Barbell mechanism for simple change of locking function.
Low power consumption.
Compatible with door latch depth of up to 15mm.
Weather resistant IP56 (FES10 non-monitored only).
12 or 24 VDC operation.
Pre-drilled for extension lips.
Finish: Satin Stainless Steel
FSH FES10 Series Electric Strike
$196.48 – $228.74 incl GST
Description
The patented small ANSI footprint, FES10 Series Electric Strikes are designed for light commercial and residential applications. They accept voltages of either 12 or 24VDC, are fire tested up to a 4 hour fire resistance rating to both Australian and British Fire Test Standards.
The strikes are easily site-interchangeable Power To Lock (PTL) or Power To Release (PTR) by simply changing over the Barbell mechanism. The device is pre-drilled to cater for extension lips, come with a 5 year warranty and have a holding strength of up to 1300kg. The FES10M version comes with Door Status Sensor (door latch monitoring). The FES10 version is weather resistant IP56 rated.
Note:
Stainless steel faceplate and keeper
Patented Barbell mechanism for simple change of locking function.
Low power consumption.
Compatible with door latch depth of up to 15mm.
Weather resistant IP56 (FES10 non-monitored only).
12 or 24 VDC operation.
Pre-drilled for extension lips.
Finish: Satin Stainless Steel
Additional information
Allegion
FES10 non-monitored, FES10M monitored

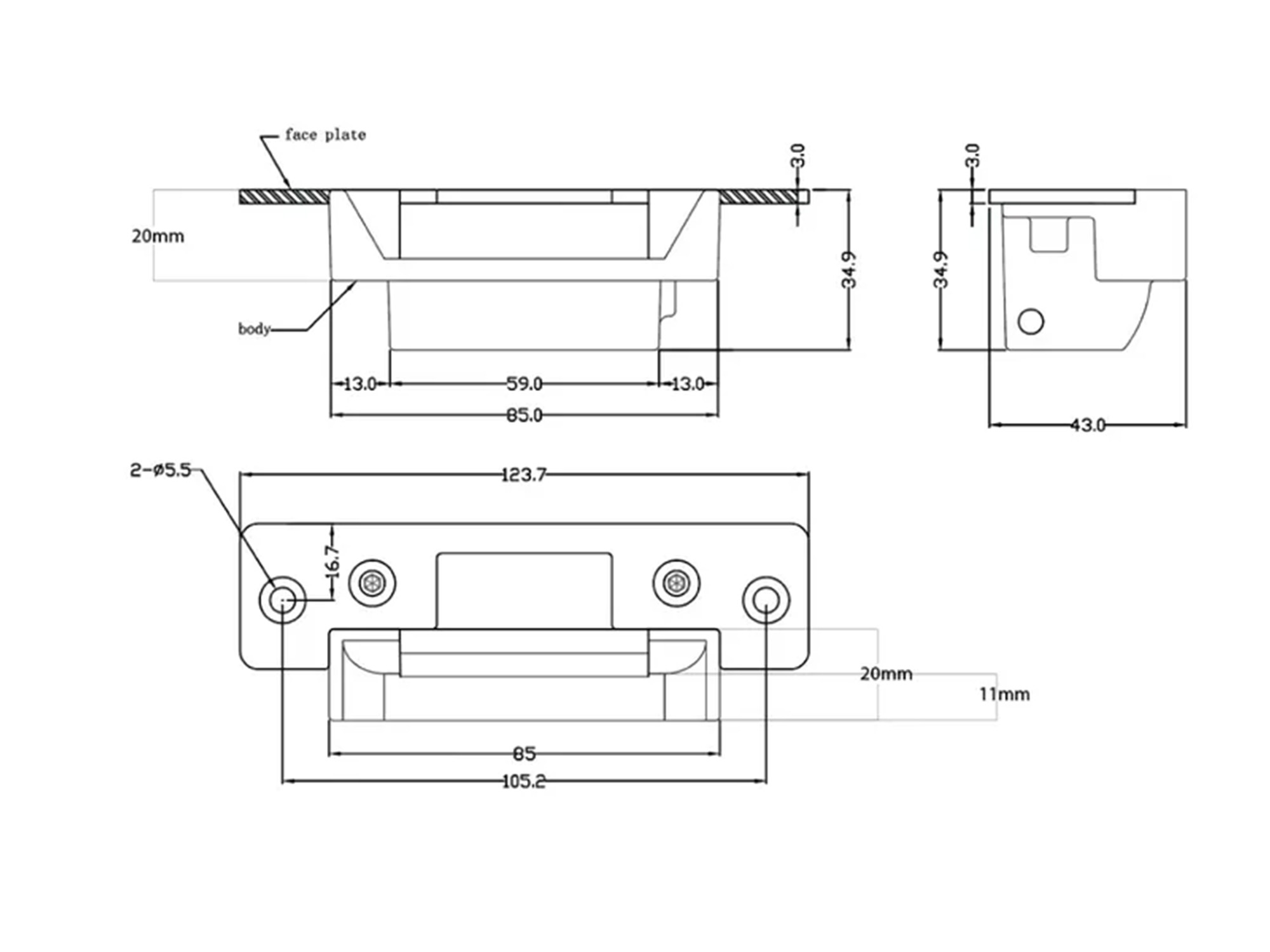

W125mm H42mm
Allow 5-7 working days
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non resalable condition, custom item or special finish will not be returnable
FSH FES10 Series Product Catalogue
DownloadFSH FES10 Series Specifications
DownloadQR Code
