Fully concealed hydraulic cam action pivot, for effortless opening and precise, adjustable closing of single- or double-action doors up to 4 m high.

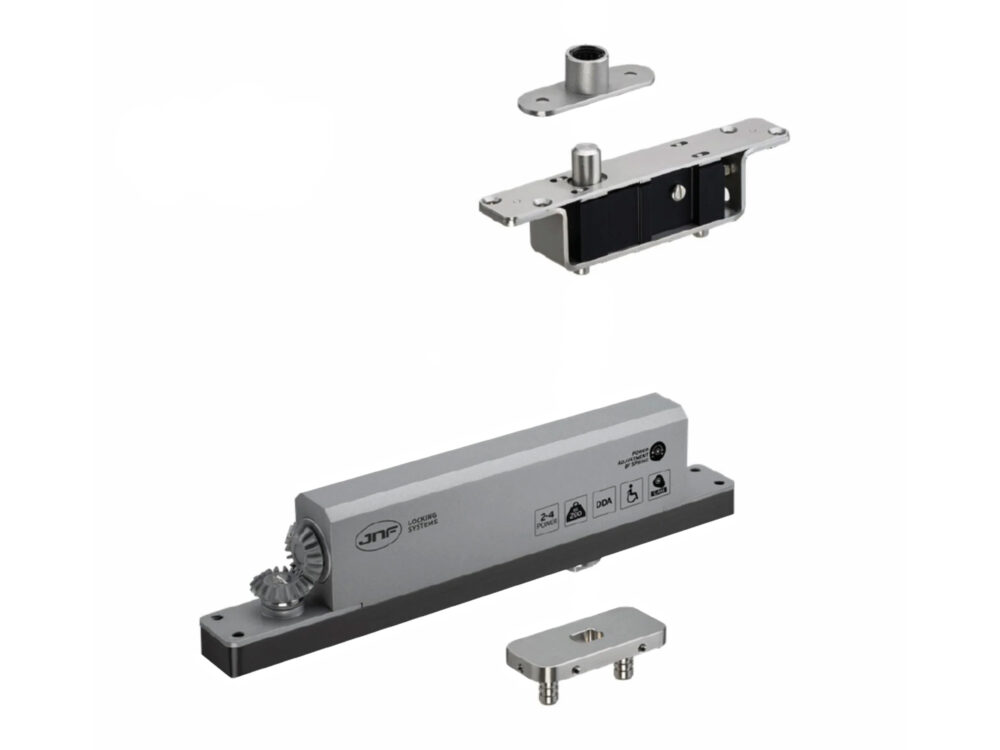

The CAM SYSTEM integrates a cam and hydraulic damping inside the door, with only a small floor base visible. It provides bidirectional regulation, two-stage closing speed control, and field-adjustable force for doors 40–200 kg and up to 3000 mm wide.
Note:
Minimum door thickness 40mm.
Maximum door height 4000mm
Maximum door width 3000mm
Hold open or non-hold open options are available.
Weight capacity 40 – 200kg.
Easy on-site adjustment after installation.
Rotation point: 40 mm → centre of door (adjustable)
Closing control – two hydraulic valves (initial + final speed).
Suitable for single or double-action doors.
Lead times are under additional information.
Finishes Available: SSS Stainless Steel
JNF 350kg Hydraulic Pivot For Heavy Duty Wooden Doors
$2,300.00 incl GST
Description
The CAM SYSTEM integrates a cam and hydraulic damping inside the door, with only a small floor base visible. It provides bidirectional regulation, two-stage closing speed control, and field-adjustable force for doors 40–200 kg and up to 3000 mm wide.
Note:
Minimum door thickness 40mm.
Maximum door height 4000mm
Maximum door width 3000mm
Hold open or non-hold open options are available.
Weight capacity 40 – 200kg.
Easy on-site adjustment after installation.
Rotation point: 40 mm → centre of door (adjustable)
Closing control – two hydraulic valves (initial + final speed).
Suitable for single or double-action doors.
Lead times are under additional information.
Finishes Available: SSS Stainless Steel
Additional information
JNF
MIN.05.215 Non Hold Open, MIN.05.215.HO Hold Open 90º
40mm
110 x 47.5 x 9mm
40mm and above
4000mm
3000mm
200kg

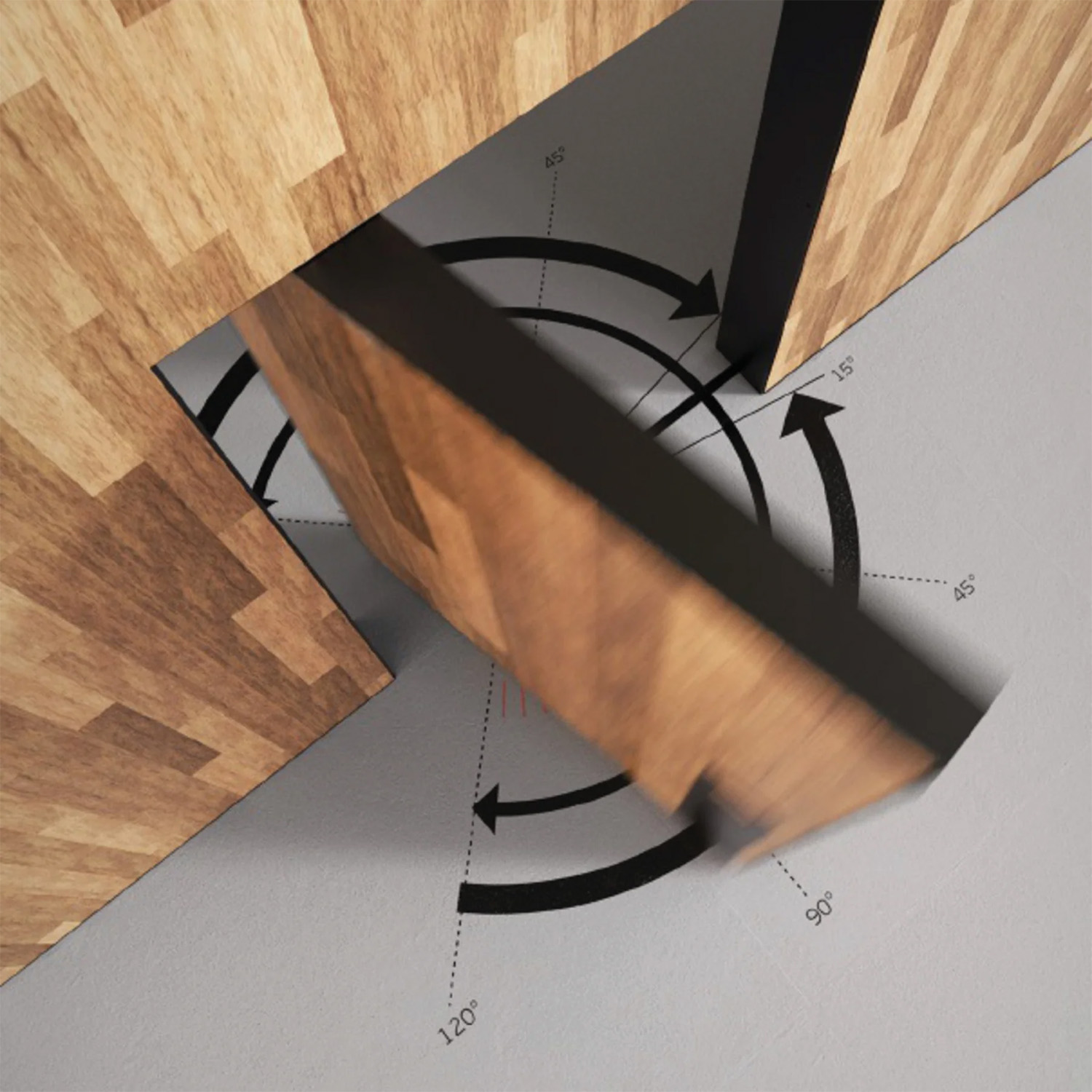

90° – 180° In either direction
Bottom of door = 14mm, Top of door = 6mm
+/- 4mm Either direction, +/- 3mm Both directions between door frame
116mm Body, 180mm overall Faceplate
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non-resalable condition, custom item or special finish will not be returnable
Allow 2 – 5 working days
IN.05.215 Flyer
DownloadIN.05.215 Instructions
DownloadQR Code
