Free Swing Pivot
The cam system, combined with hydraulic technology, allows for the controlled closing of large swing doors while opening them with minimal effort. Doors can be single or double action, with a minimum thickness of 35mm
Once installed fitting is hidden inside the door, with only a small base plate on the floor, with a top bearing pivot installed into the head of the door frame.
Note:
Free swinging pivot without opening limit.
Suitable for doors up to 60kg.
Pivot rotation point from 50mm to the centre of the door.

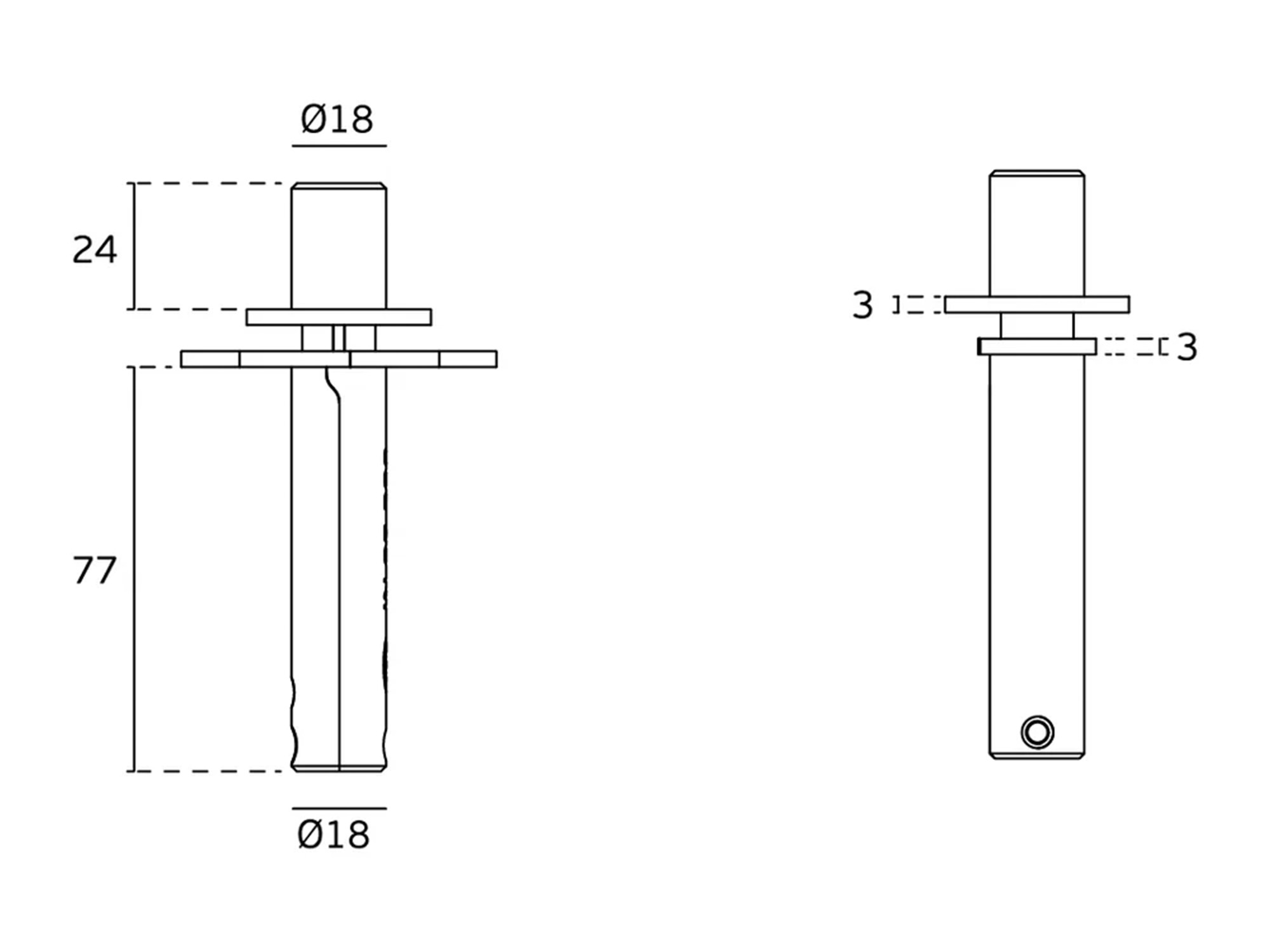

Upper pivot with needle bearing.
No floor cutting or masonry work required for installation.
Applicable to single or double-action doors.
Minimum distance from the axis to the top of the door is 150mm.
Minimum door thickness 35mm.
Lead times are under additional information.
Finishes Available: SSS Stainless Steel

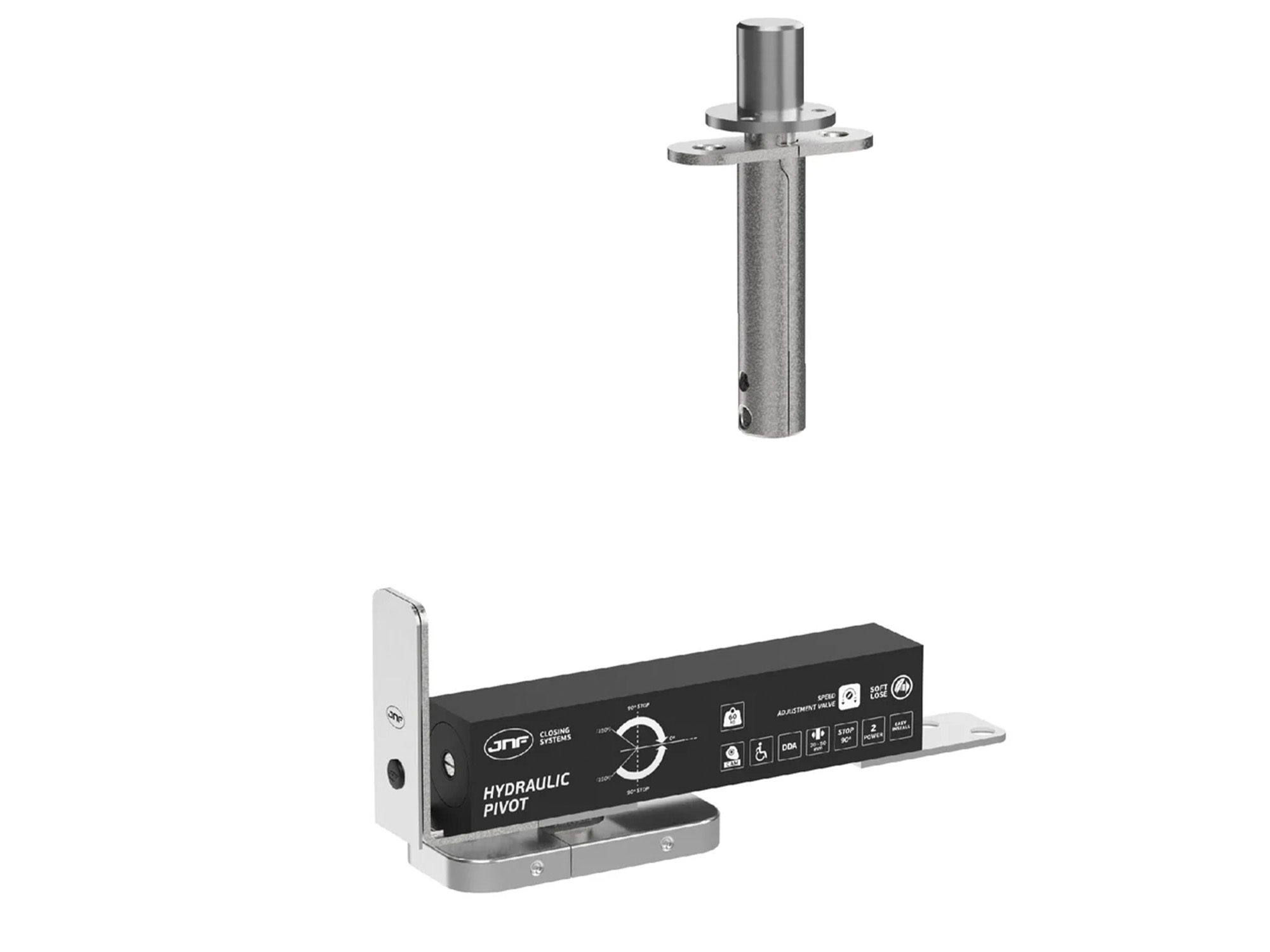

JNF 60kg Hydraulic Pivot For Wooden Doors
$515.06 incl GST
Description
Free Swing Pivot
The cam system, combined with hydraulic technology, allows for the controlled closing of large swing doors while opening them with minimal effort. Doors can be single or double action, with a minimum thickness of 35mm
Once installed fitting is hidden inside the door, with only a small base plate on the floor, with a top bearing pivot installed into the head of the door frame.
Note:
Free swinging pivot without opening limit.
Suitable for doors up to 60kg.
Pivot rotation point from 50mm to the centre of the door.
Upper pivot with needle bearing.
No floor cutting or masonry work required for installation.
Applicable to single or double-action doors.
Minimum distance from the axis to the top of the door is 150mm.
Minimum door thickness 35mm.
Lead times are under additional information.
Finishes Available: SSS Stainless Steel
Additional information
JNF
50mm

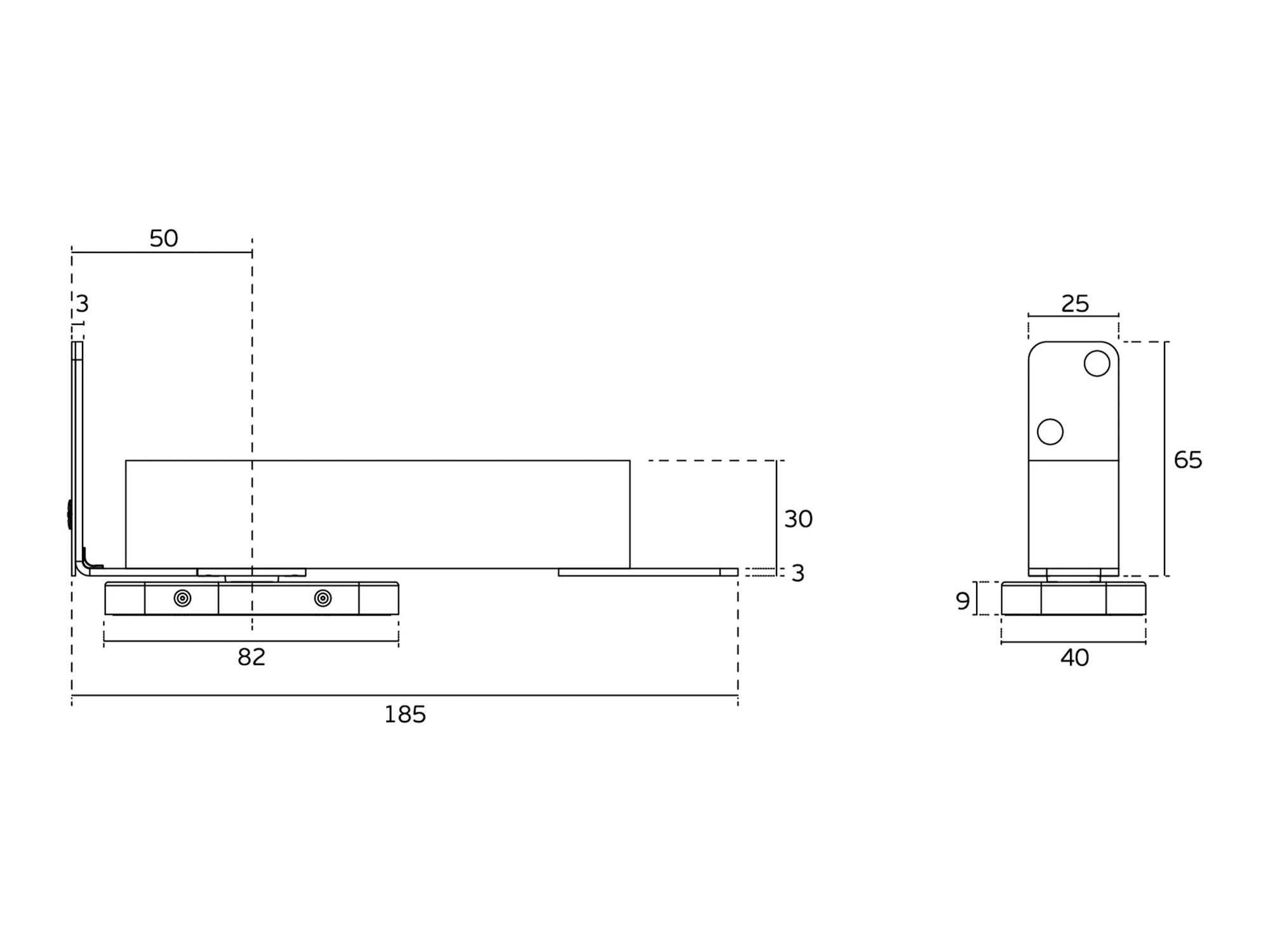

82 x 40 x 9mm
30 – 50mm
90° In either direction
850mm
Bottom of door = 12.5mm, Top of door = 7mm
+/- 4mm Either direction, +/- 3mm Both directions between door frame
77mm
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non-resalable condition, custom item or special finish will not be returnable
Allow 2 – 5 working days
JNF IN.05.203.HO Flyer
DownloadJNF IN.05.203.HO Installation Instructions
