Description
Easy to install, this adjustable hydraulic door pivot is designed to carry a door up to 60kg in weight.
Note:
Suitable for timber doors.
Pivot set for double-action or rebated wooden doors
Features 2 valve closing regulation.
Easy to fit onto a finished floor without needing to cut concrete.
Minimum door thickness 40mm.
Maximum door weight 60kg.
Maximum door width 850mm.
Adjustable angle +3mm | 4º.
Soft closing action.
Finishes Available: Stainless Steel, Titanium Gold, Black
JNF 60kg Hydraulic Timber Door Pivot
$515.06 incl GST
Description
Easy to install, this adjustable hydraulic door pivot is designed to carry a door up to 60kg in weight.
Note:
Suitable for timber doors.
Pivot set for double-action or rebated wooden doors
Features 2 valve closing regulation.
Easy to fit onto a finished floor without needing to cut concrete.
Minimum door thickness 40mm.
Maximum door weight 60kg.
Maximum door width 850mm.
Adjustable angle +3mm | 4º.
Soft closing action.
Finishes Available: Stainless Steel, Titanium Gold, Black
Additional information
Mardeco
MIN.05.203 HO Stainless Steel

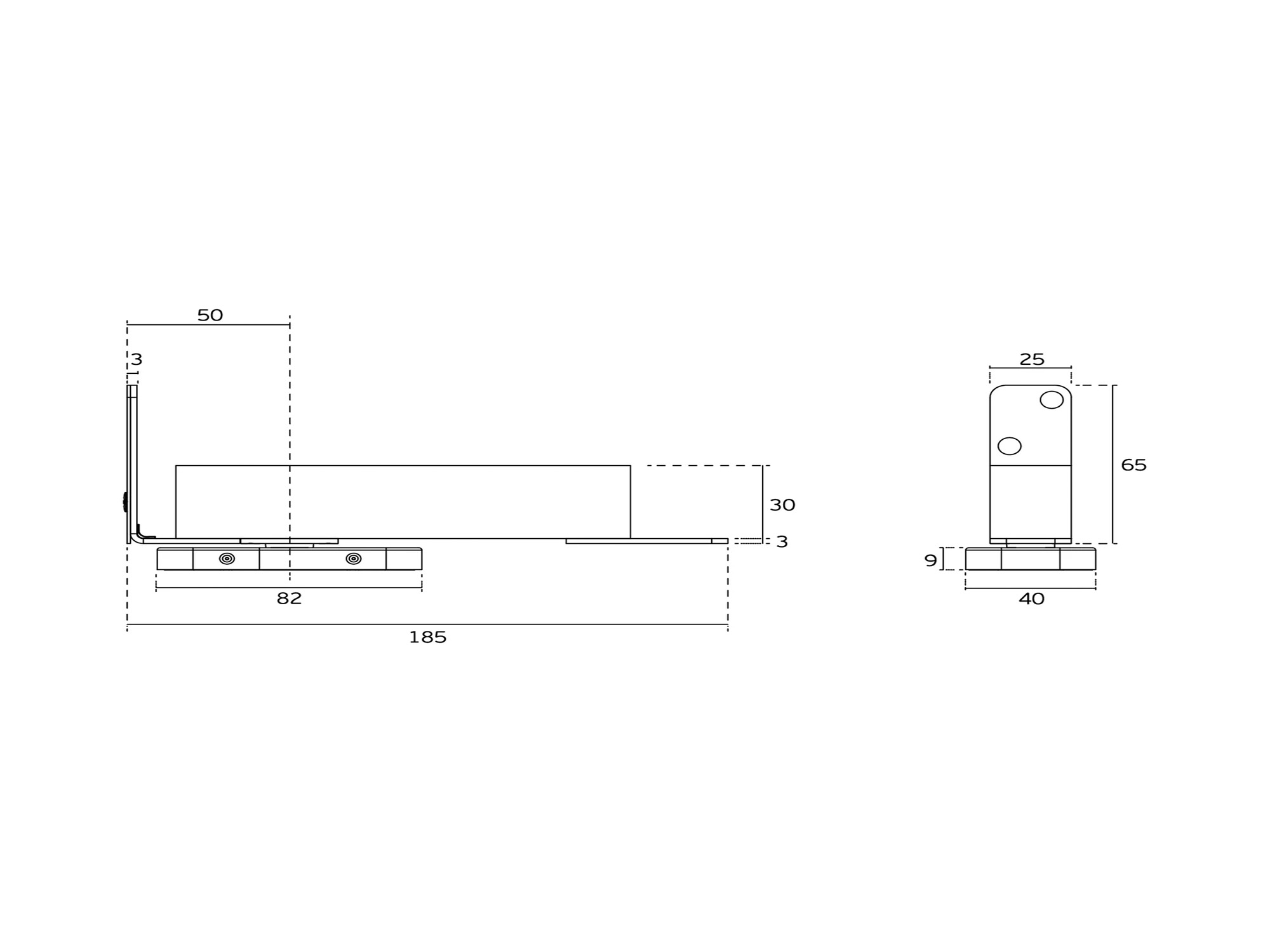

77mm x 18mm
185mm x 30mm
50mm From Edge of door
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non-resalable condition, custom item or special finish will not be returnable
Allow 2-5 working days
JNF Hinge and Pivot Catalogue
DownloadJNF IN.05.203 HO Flyer
DownloadIN.05.203 HO Installation Instructions
DownloadQR Code
