The JNF 3D invisible hinge closes the door perfectly in line with the wall leaving the hinge concealed. The hinge body is made of die-cast zinc alloy. The final finish is made by an epoxy coating, guaranteeing ultimate resistance to oxidation, a uniform finish and resistance to scratches.
The hinge allows three-dimensional adjustment. The door can be aligned in three axes making possible the perfect alignment of the door with the wall where there is frameless architecture.
Note:
Tested to 200,000 opening cycles.
Maximum opening 180 degrees
Supplied per item, and not as a pair.
Confirm the number of hinges required by referring to the attached sheet.
Fitting instructions included.
Lead times under additional information.
Finishes: Matt Black, Stainless Steel, White, Copper. Brass
JNF Coplan 50kg Concealed Hinges
$60.70 – $80.94 incl GST
Description
The JNF 3D invisible hinge closes the door perfectly in line with the wall leaving the hinge concealed. The hinge body is made of die-cast zinc alloy. The final finish is made by an epoxy coating, guaranteeing ultimate resistance to oxidation, a uniform finish and resistance to scratches.
The hinge allows three-dimensional adjustment. The door can be aligned in three axes making possible the perfect alignment of the door with the wall where there is frameless architecture.
Note:
Tested to 200,000 opening cycles.
Maximum opening 180 degrees
Supplied per item, and not as a pair.
Confirm the number of hinges required by referring to the attached sheet.
Fitting instructions included.
Lead times under additional information.
Finishes: Matt Black, Stainless Steel, White, Copper. Brass
Additional information
JNF
MIN.05.064.B Black, MIN.05.064 Stainless Steel, MIN.05.064.W White, MIN.05.064.SC Copper, MIN.05.064.SG Gold
Hinges reversible for left or right-hand doors
50kg
40mm
Fixings not supplied with hinges
Allow 5-7 Working Days
Special order product, therefore items can not be returned for credit.

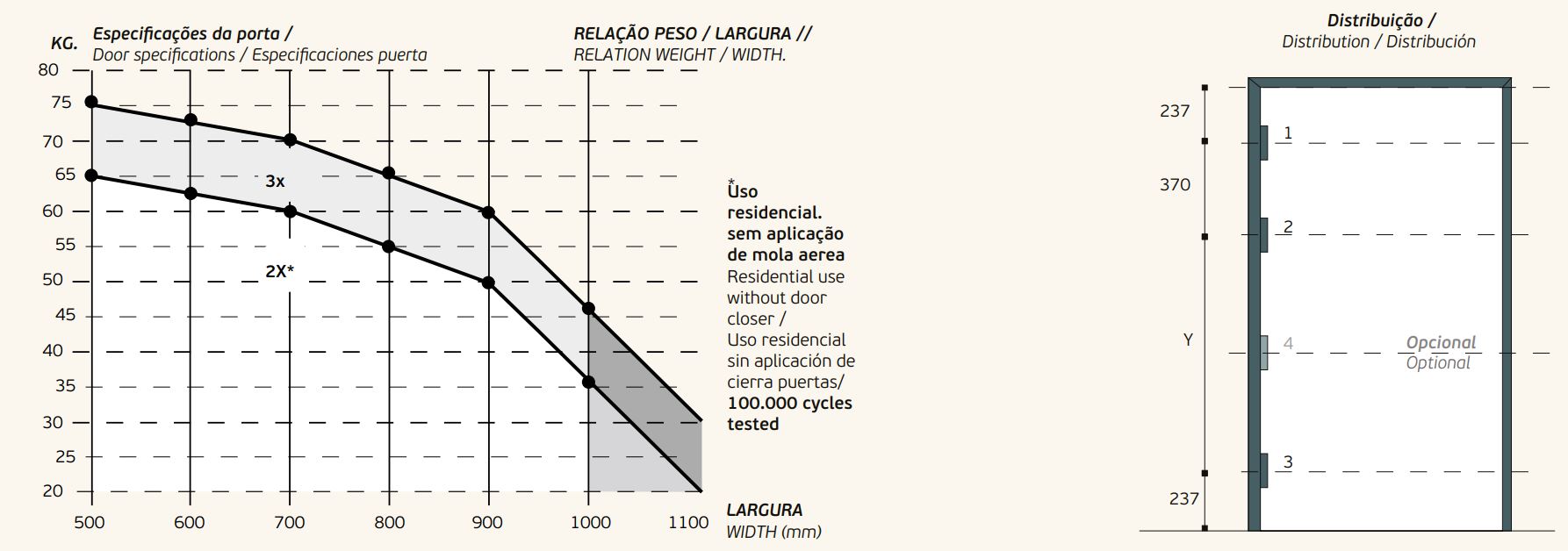

JNF Coplan Hinge Selection Sheet

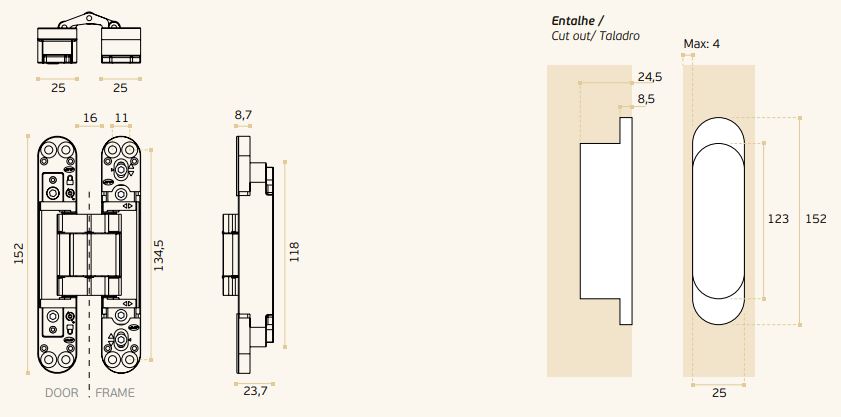

DownloadJNF Coplan 50kg Hinge Dimesion
DownloadJNF Hinge Catalogue
DownloadQR Code
