Description
The 5300 Series narrow stile furniture is designed for use in commercial applications, including exterior and interior doors for retail/shop front, educational, governmental, medical and public buildings. The narrow plate is ideal for use on narrow aluminum or timber stiles.
With a range of modern and contemporary lever designs, the 5300 Series will complement any decor.
Note:
Dual handed.
Constructed of commercial-grade, quality components including forged brass handles and extruded brass plates.
Heavy-duty compression spring provides a smooth, positive return action of the lever and eliminates droop, extending the life of the product.
Symmetrically designed levers are able to be handed on site within seconds, with a simple 180° rotation of the lever in the preferred direction of use prior to installation.
Designed for use with Legge 995 narrow stile mortice locks, the 5300 Series can also be supplied to suit Legge 990MF mortice locks.
Finishes Available: Satin Chrome Plate, Chrome Plate, Polished Brass, Oil Rubbed Bronze, Satin Black Chrome, Satin Brass, Antique Bronze

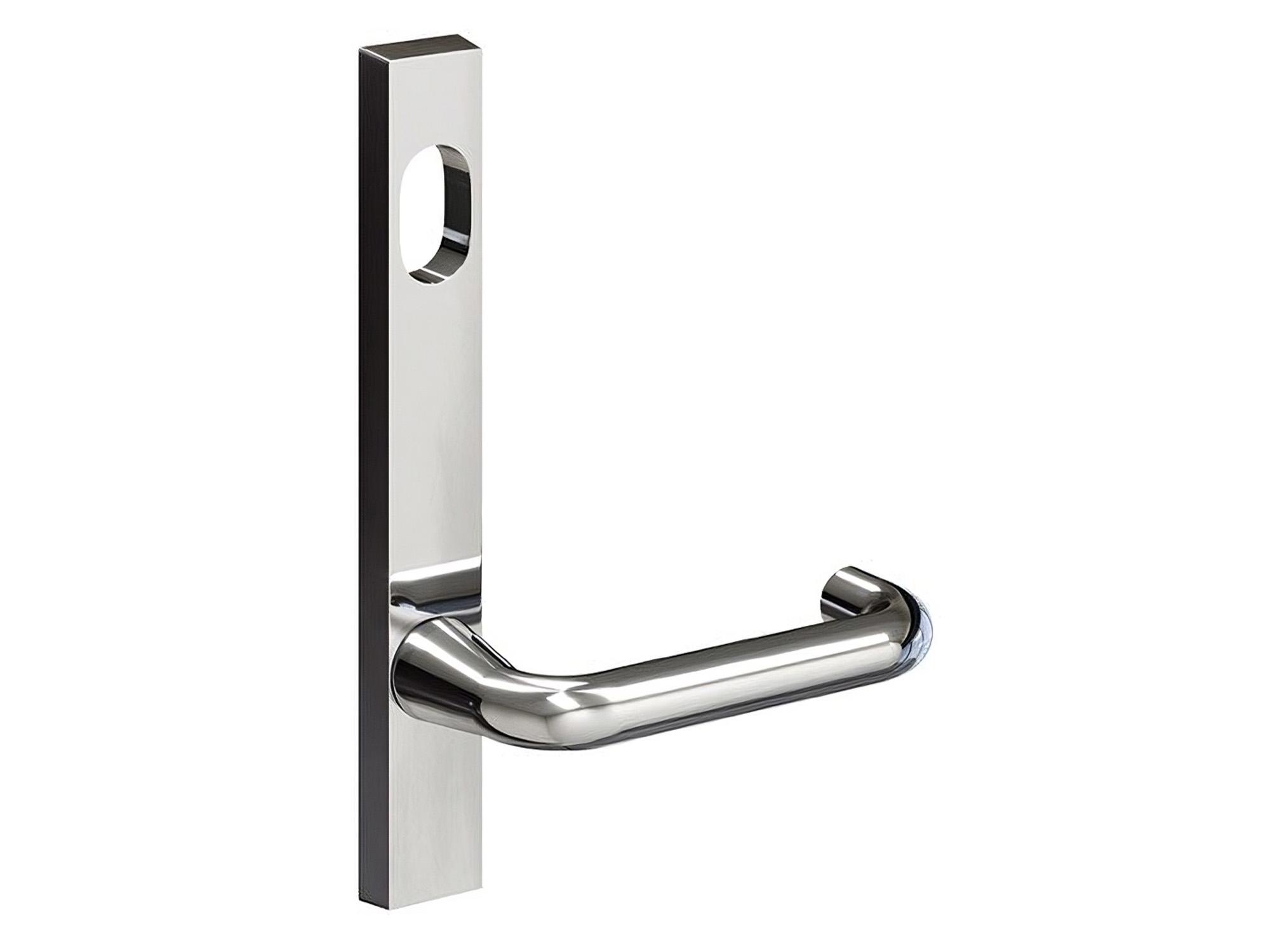

Legge 5300 Series Plate With Alpha 29 Lever
$211.14 – $274.68 incl GST
Description
The 5300 Series narrow stile furniture is designed for use in commercial applications, including exterior and interior doors for retail/shop front, educational, governmental, medical and public buildings. The narrow plate is ideal for use on narrow aluminum or timber stiles.
With a range of modern and contemporary lever designs, the 5300 Series will complement any decor.
Note:
Dual handed.
Constructed of commercial-grade, quality components including forged brass handles and extruded brass plates.
Heavy-duty compression spring provides a smooth, positive return action of the lever and eliminates droop, extending the life of the product.
Symmetrically designed levers are able to be handed on site within seconds, with a simple 180° rotation of the lever in the preferred direction of use prior to installation.
Designed for use with Legge 995 narrow stile mortice locks, the 5300 Series can also be supplied to suit Legge 990MF mortice locks.
Finishes Available: Satin Chrome Plate, Chrome Plate, Polished Brass, Oil Rubbed Bronze, Satin Black Chrome, Satin Brass, Antique Bronze
Additional information
Legge
ALL5300/29SCP Plate with cylinder hole Satin Chrome Plate, ALL5300/29CP Plate with cylinder hole Chrome Plate, ALL5300/29PB Plate with cylinder hole Polished Brass, ALL5300/29ORB Plate with cylinder hole Oil Rubbed Bronze, ALL5300/29SBC Plate with cylinder hole Satin Black Chrome, ALL5300/29SB Plate with cylinder hole Satin Brass, ALL5300/29ABZ Plate with cylinder hole Antique Bronze
Solid Brass
120mm
65mm
185 x 25 x 12mm
Commercial
30 Year mechanical
10 Year Finish
Allow 5-7 working days Satin Chrome Plate
Allow 30 working days from ordering for all other finishes
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non resalable condition, custom item or special finish will not be returnable (Special finish is all finished excluding Satin Chrome)
Legge 5300 Series Product Catalogue
DownloadLegge 5300 Series Installation Instructions
DownloadAllegion Maintenance Guide
DownloadQR Code
