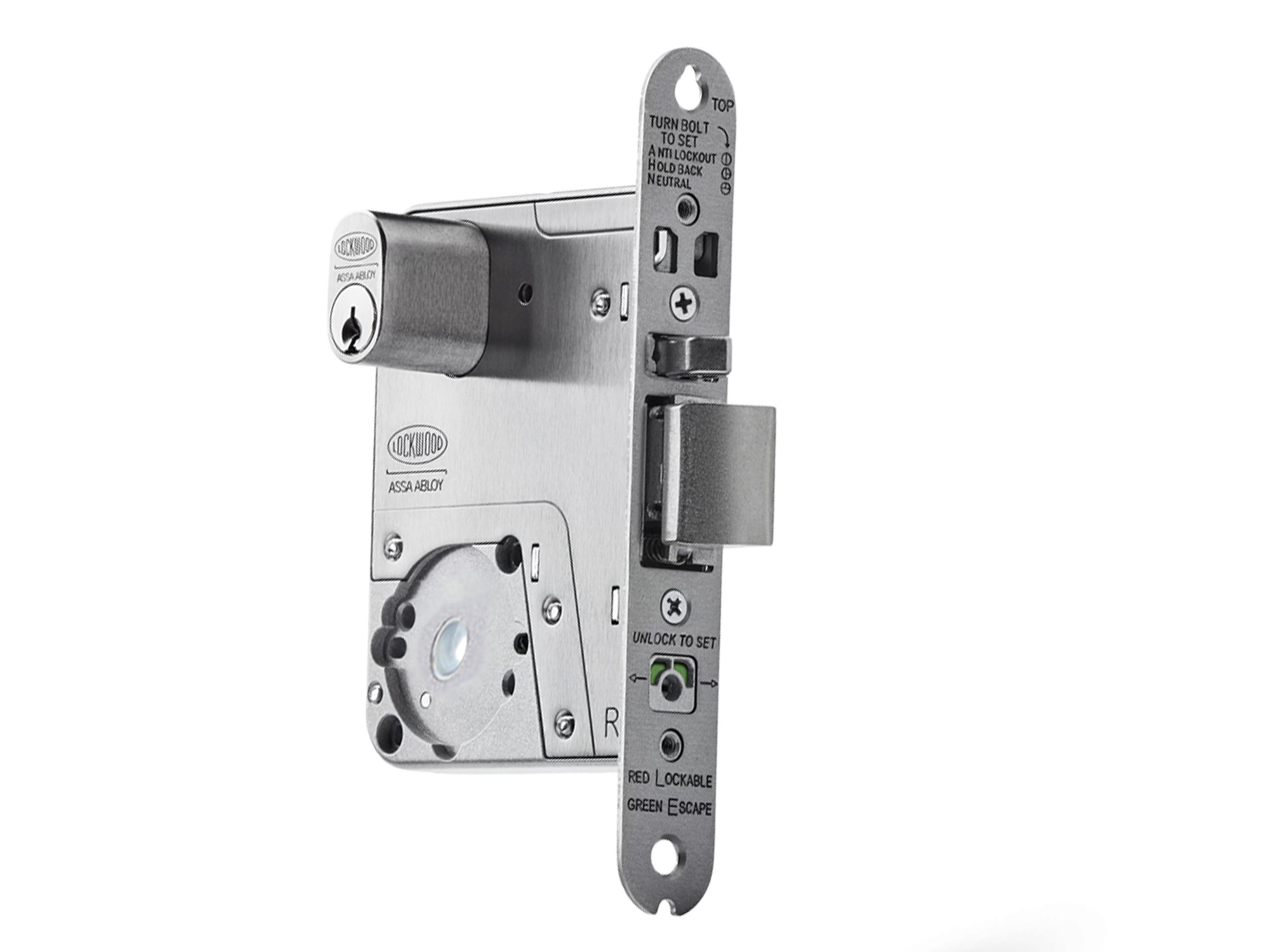

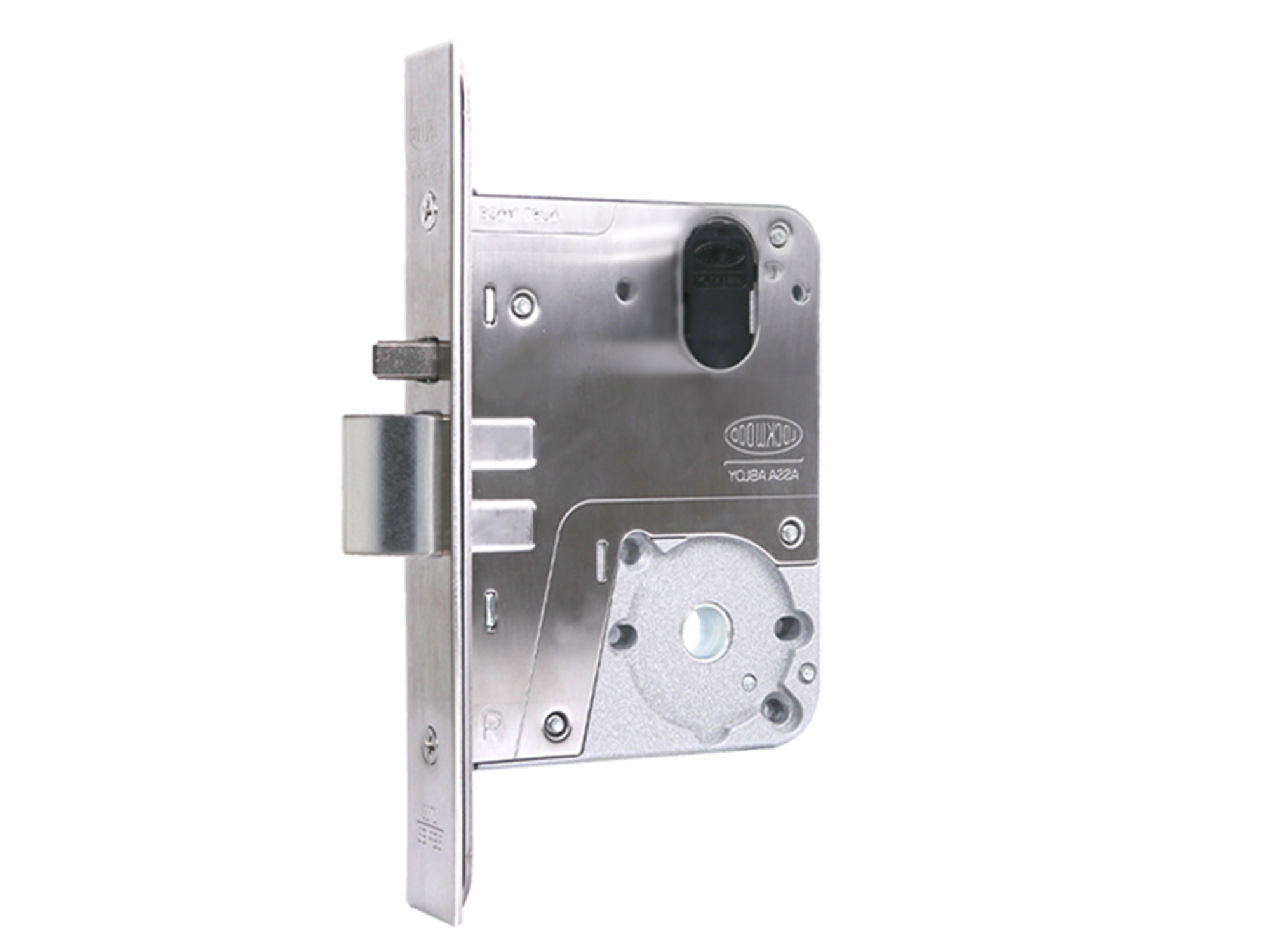

In the spirit of continuous improvement, the Lockwood Selector® 3770 Series MK2 Mortice lock range is the latest step in the evolution of the Lockwood Selector® mortice lock. The upgrade allows for more applications of the Lockwood Selector® mortice lock, such as the Lockwood Fluid Panic Exit Device.
Note:
This mortice night latch locks automatically when the door is closed.

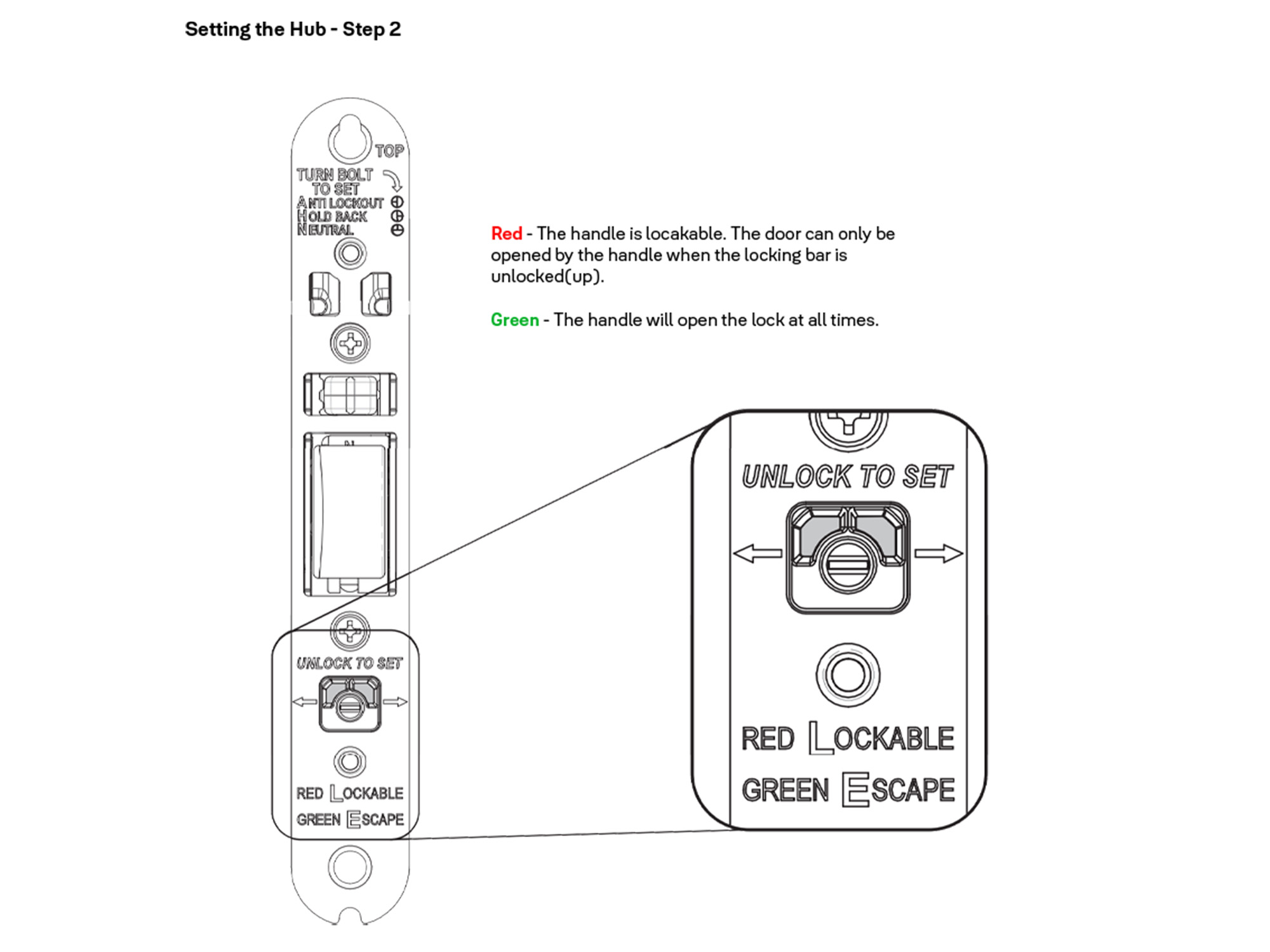

Easy red/green function setting.

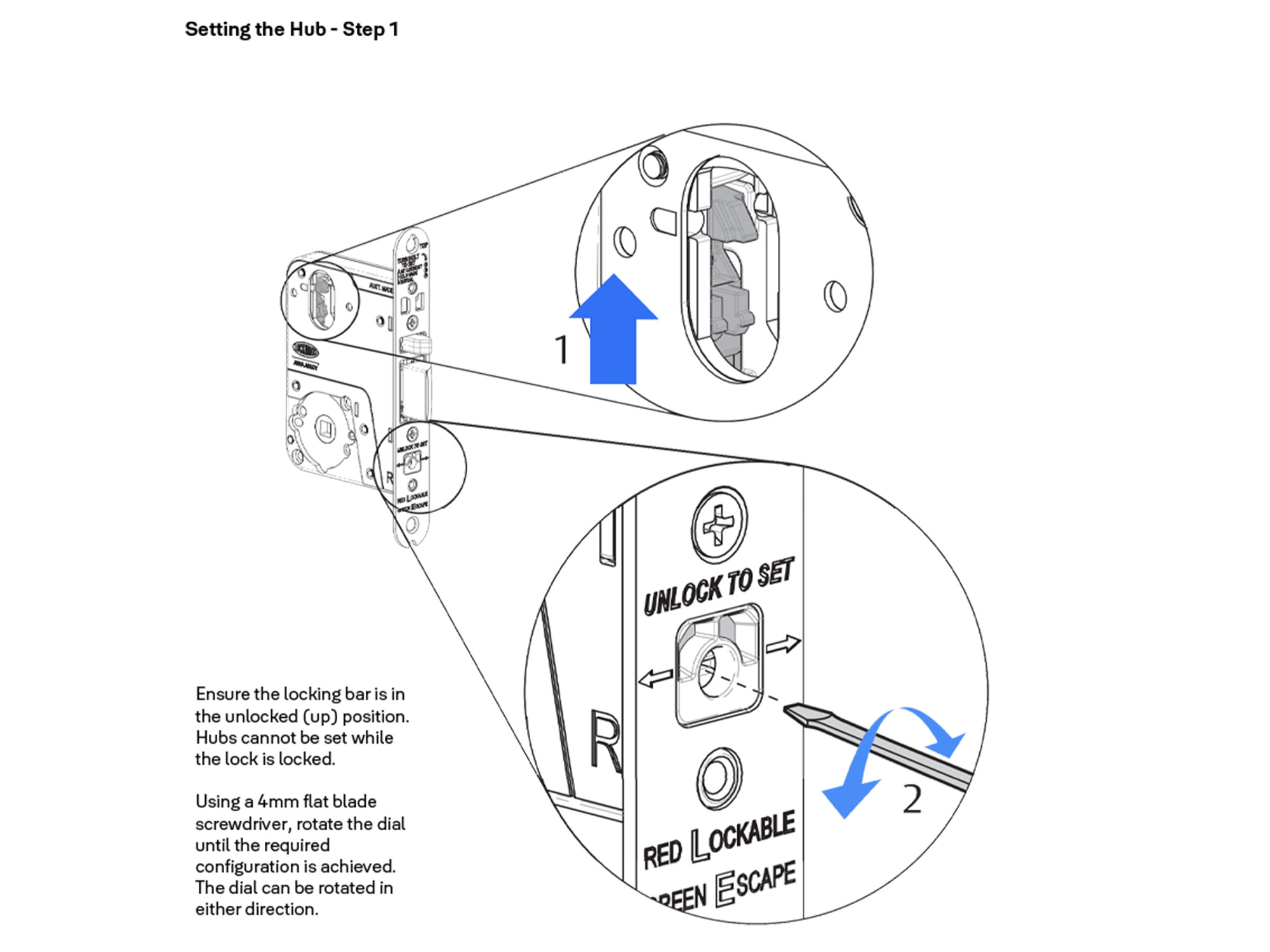

All lock settings are made from behind the faceplate, allowing for simple in-door configuration.

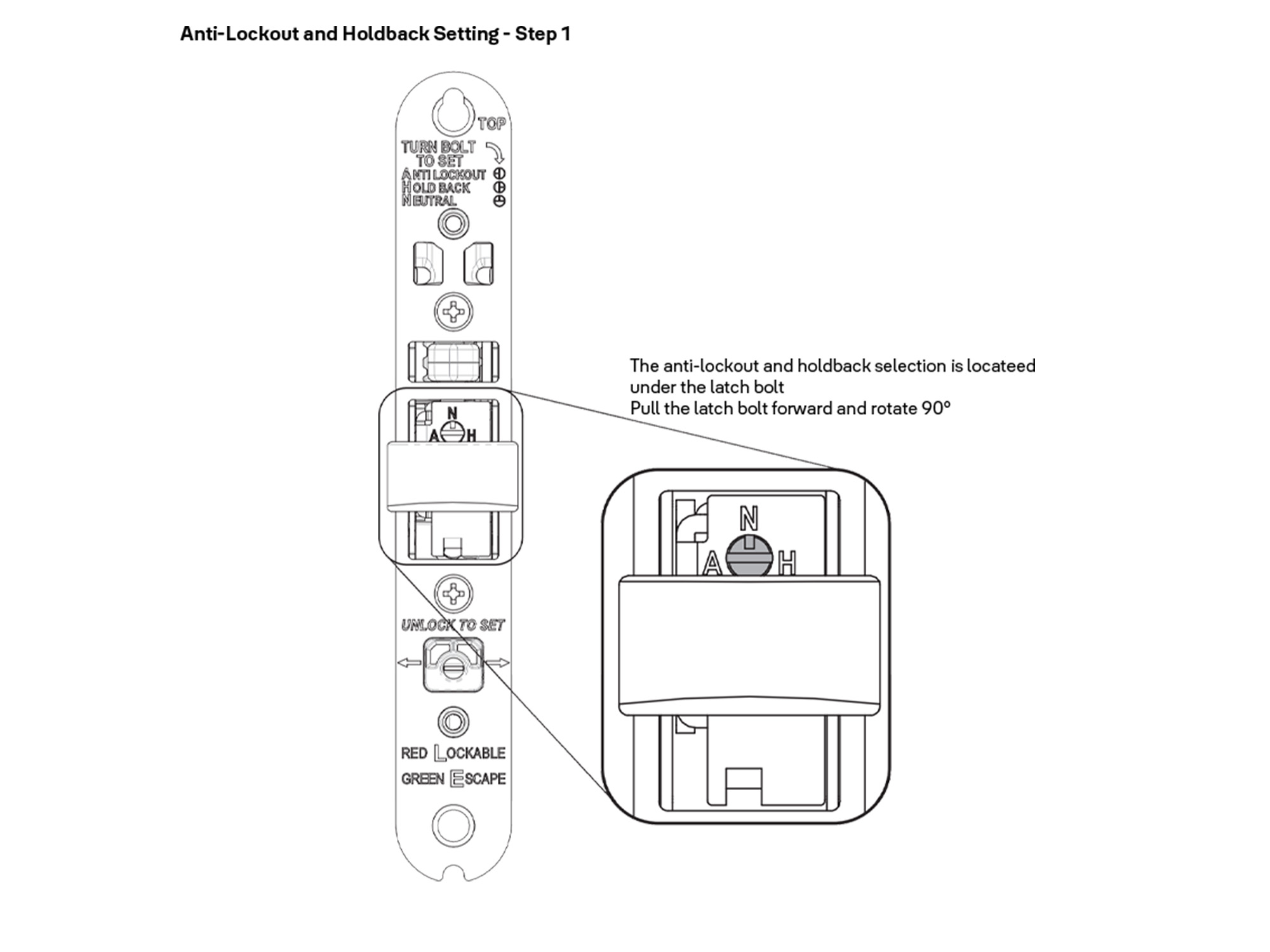

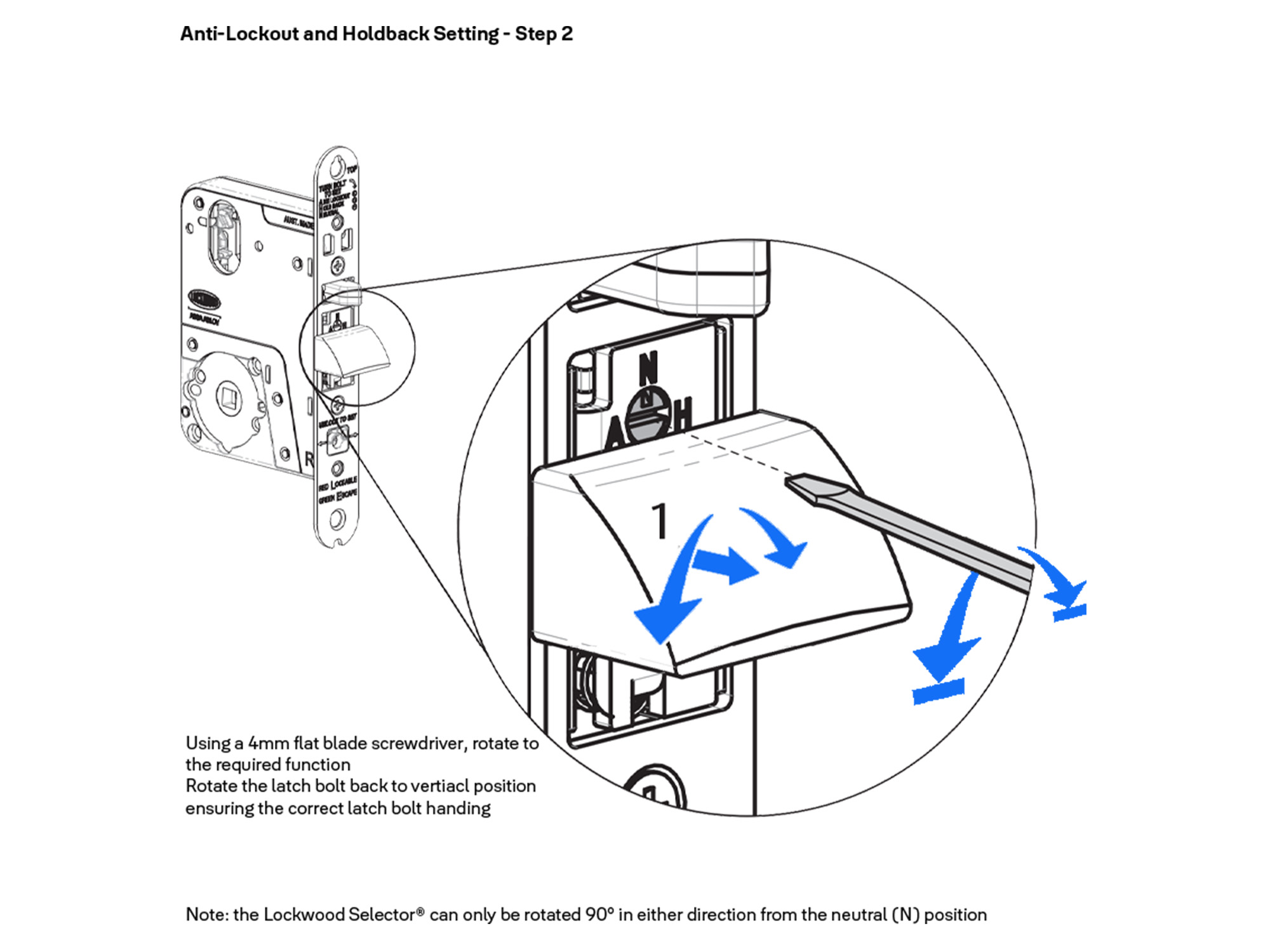

Standard primary locks include anti-lockout and holdback capabilities.
Improved cylinder functions, including lock/unlock and retract latch as standard.
Deadlatching only.
Accepts 570 series oval lock cylinders.
15mm latch bolt.

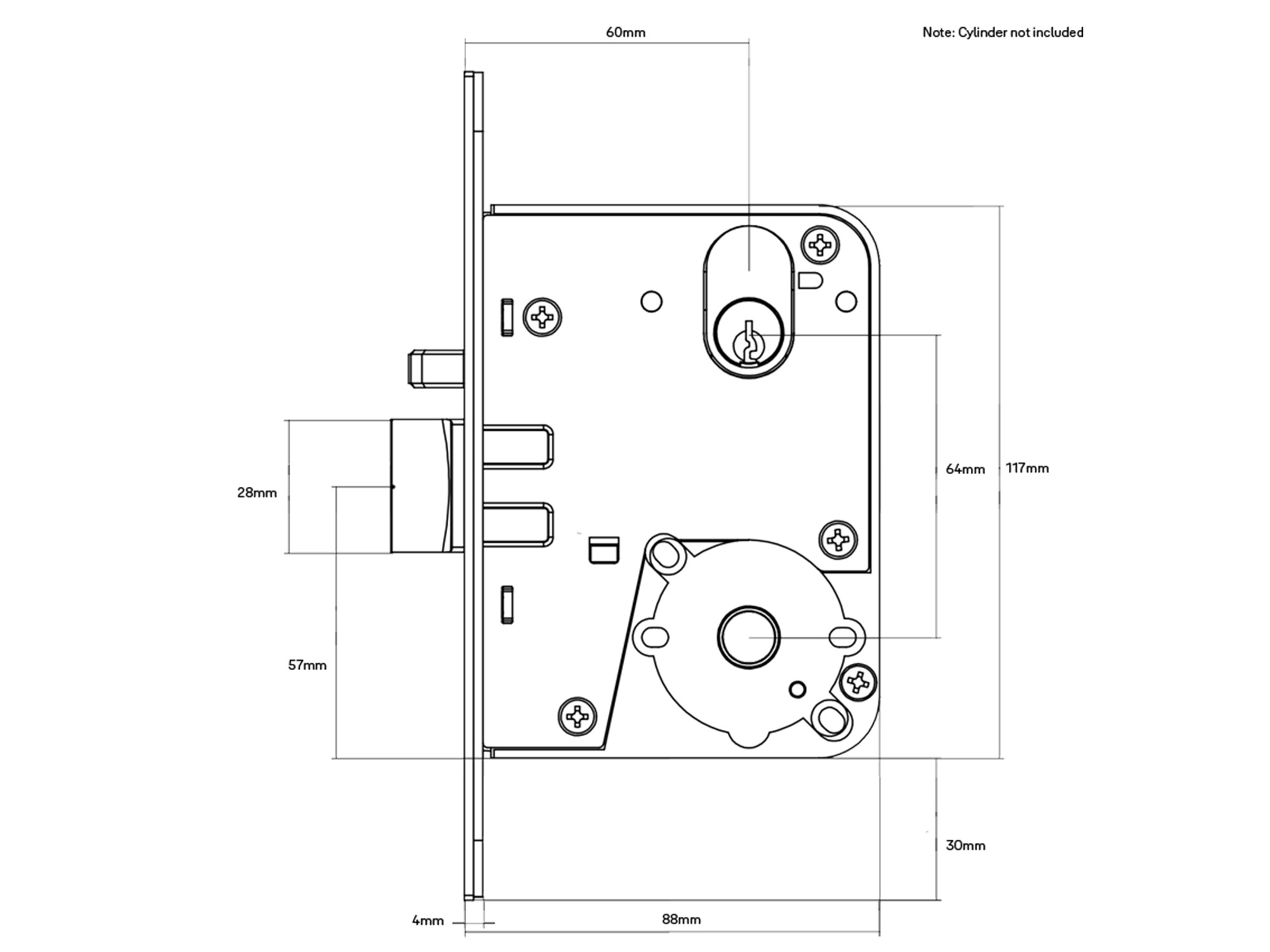

60mm backset.
Nn-Handed.
Lead times under additional information.
Finish: Stainless Steel
Additional information
Manufacturer
Lockwood
Finish
SCP Satin Chrome Plate
Lock Case
High purity die cast zinc alloy case
Backsets
60mm and 89mm backset also available (Made to order)

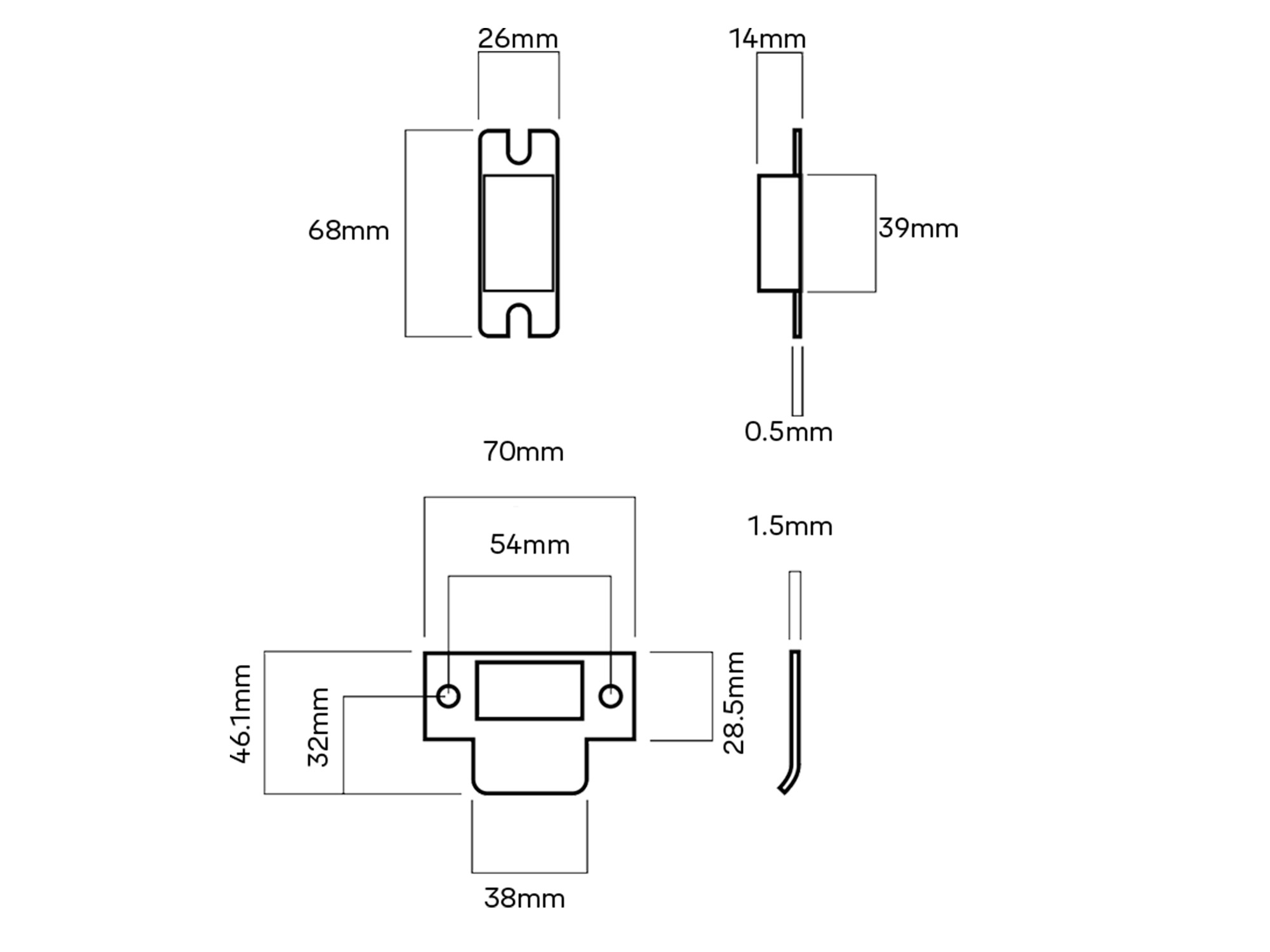

Forend Plate And Strike
Stainless Steel
Fire Rating
Lockwood 3570 Series Mortice Locks have been successfully tested up to 4 hours (depending on type of door set) on fire door assemblies in accordance with Australian Standard AS 1905.1-2005, Part, 1: Fire Resistant Door Sets.
Durability
All 3570 Series Cylinder Mortice Locks conform with level D3 (Durability) Australian Lock Standard (AS 4145.2 – 1993)
Door Clearance
To ensure correct functioning of the dead latching mechanism and security for all locks, the clearance between the door and the frame should be 3mm. The dead latching will operate up to 8mm door clearance, however door clearances over 5mm are not recommended.
Warranty
25 Year mechanical from date of purchase from defects in material and workmanship, except for electrical and electronic components, which are warranted for 3 years.
Lead Times
Allow 4 – 5 working days from ordering, please note this is a purchased to order item, THEREFORE THIS FITTING IS NON-RETURNABLE.
Returns Policy
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non resalable condition, custom item or special finish will not be returnable
