The Lockwood Synergy® 3570 series Cylinder Mortice locks offer a wide range of security cylinder mortice locks and latches suitable for heavy-duty use in industrial and commercial buildings, institutions, clubs, hotels, and similar buildings. The Lockwood Synergy® 3570 series cylinder mortice locks are made from quality materials to meet high durability and strength requirements.
Note: High-purity zinc alloy material case with stainless steel forend plate and strike.

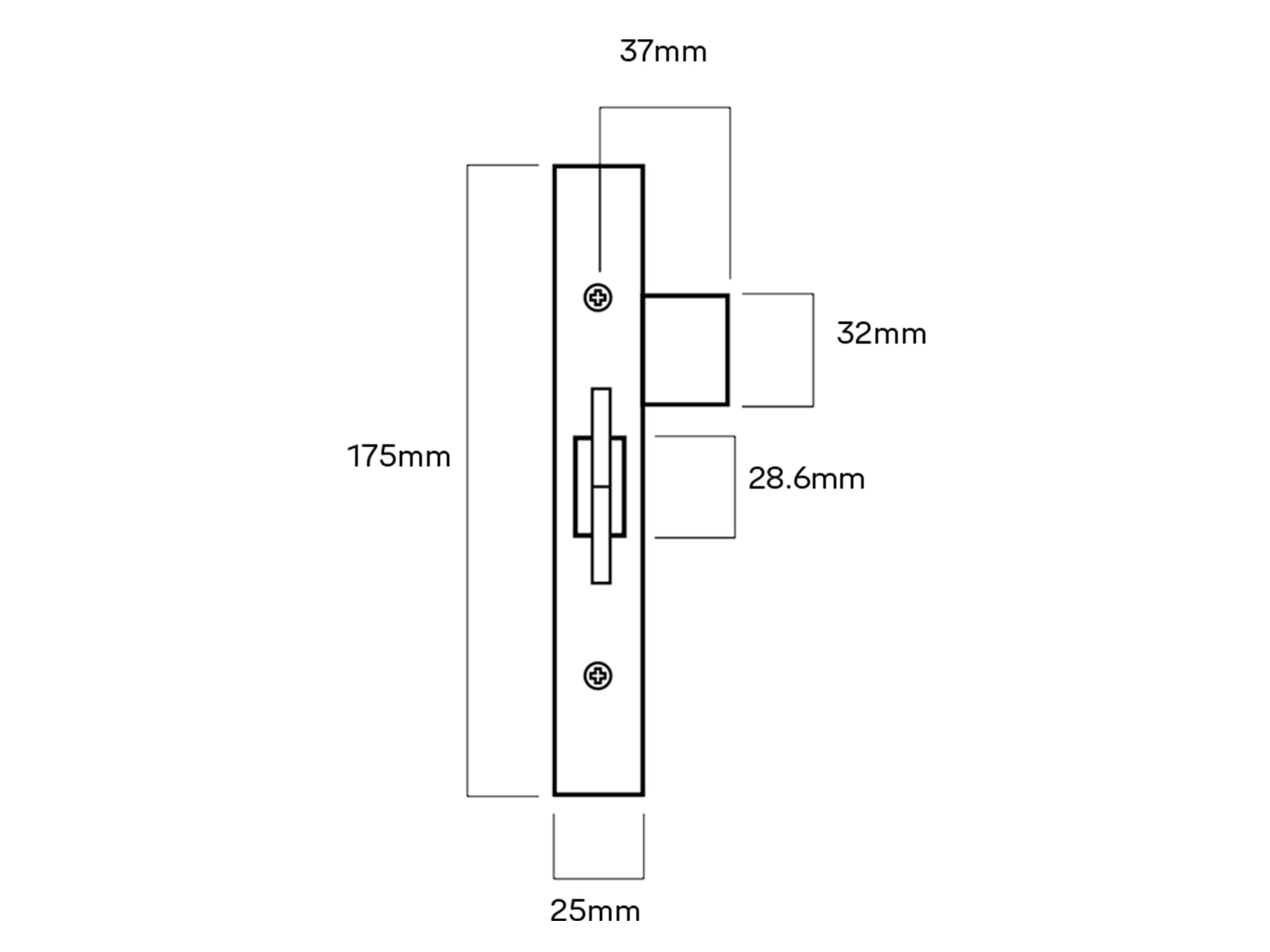

Stainless steel forend plate supplied in square end (standard) and optional round end.
High-grade spring steel material, corrosion-protected.
Standard door thickness 32 – 50mm.

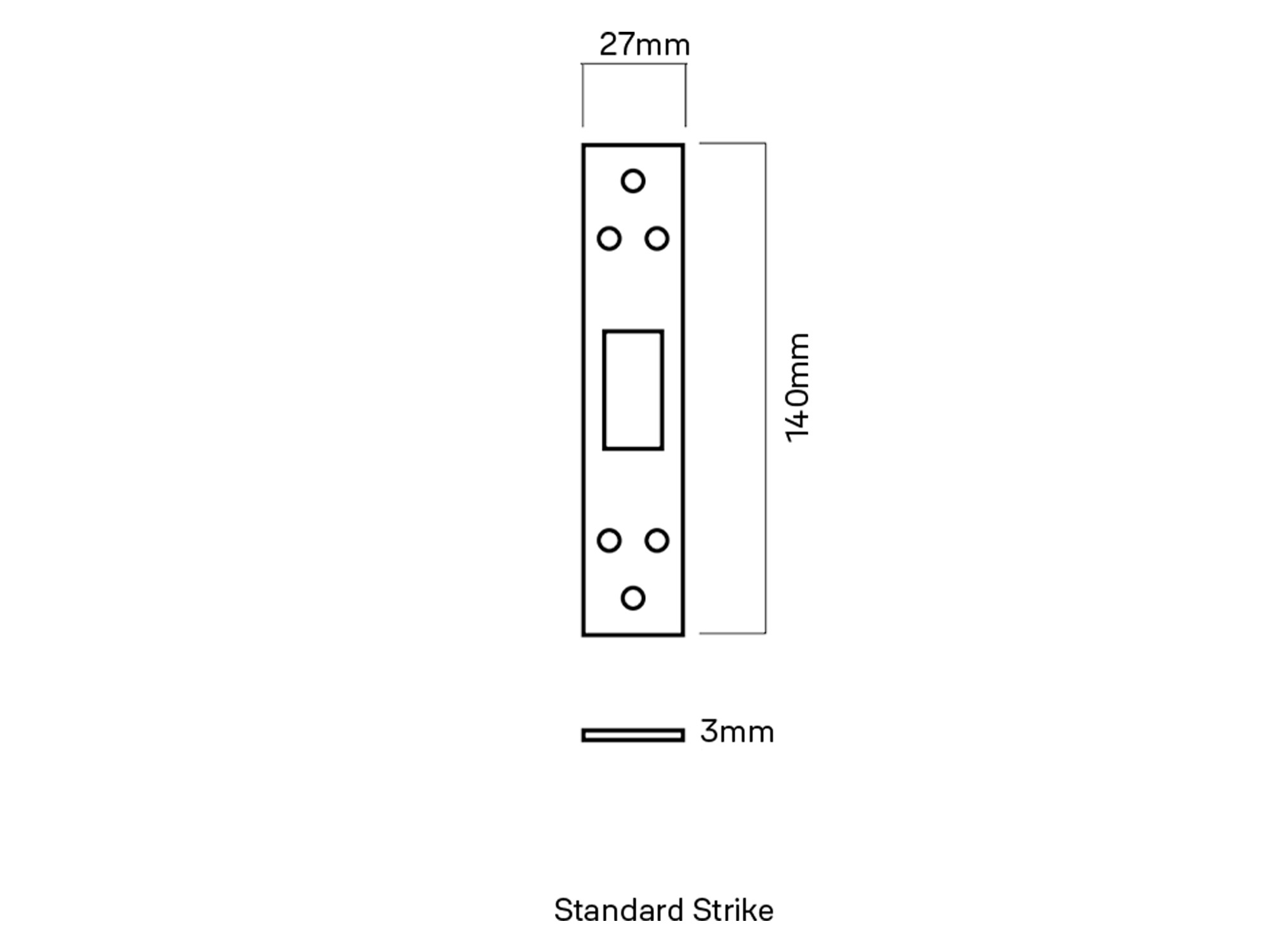

Universal stainless steel strike suitable for a 4-hour fire rating.
Bolt stainless steel, fire-rated to 4 hours as standard.
Deadbolts are 19mmstainless steel.
Pricing is for the lock body only, oval barrel in the desired length is to be added.
Lead times under additional information.
Finish: Stainless Steel
Additional information
Manufacturer
Lockwood
Finish
SCP Satin Chrome Plate
Lock Case
High purity die cast zinc alloy case

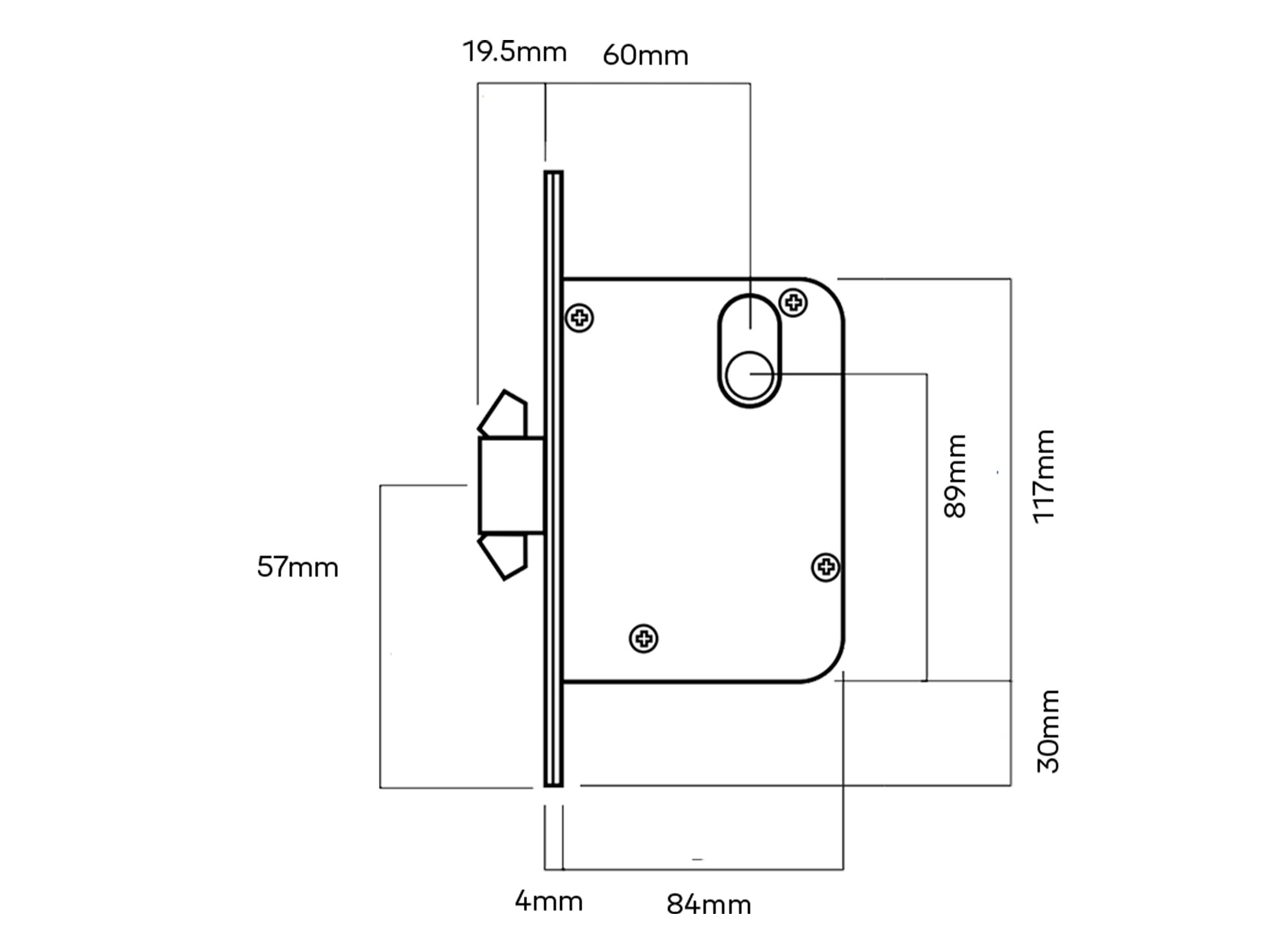

Backsets
89mm and 127mm backset also available (89mm Made to order)
Forend Plate And Strike
Stainless Steel
Fire Rating
Lockwood 3570 Series Mortice Locks have been successfully tested up to 4 hours (depending on type of door set) on fire door assemblies in accordance with Australian Standard AS 1905.1-2005, Part, 1: Fire Resistant Door Sets.
Durability
All 3570 Series Cylinder Mortice Locks conform with level D3 (Durability) Australian Lock Standard (AS 4145.2 – 1993)
Door Clearance
To ensure correct functioning of the dead latching mechanism and security for all locks, the clearance between the door and the frame should be 3mm. The dead latching will operate up to 8mm door clearance, however door clearances over 5mm are not recommended.
Warranty
10 Year mechanical
Lead Times
Allow 11 working days from ordering, please note this is a made to order item, THEREFORE THIS FITTING IS NON-RETURNABLE.
Returns Policy
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non resalable condition, custom item or special finish will not be returnable
Lockwood Synergy Series Mortice Locks Service Manual
$34.41–$46.53Price range: $34.41 through $46.53 incl GSTSelect options
This product has multiple variants. The options may be chosen on the product page
$33.40–$36.40Price range: $33.40 through $36.40 incl GSTSelect options
This product has multiple variants. The options may be chosen on the product page
Lockwood 60mm Backset Mortice Sliding Door Lock
$298.11 incl GST
Description
The Lockwood Synergy® 3570 series Cylinder Mortice locks offer a wide range of security cylinder mortice locks and latches suitable for heavy-duty use in industrial and commercial buildings, institutions, clubs, hotels, and similar buildings. The Lockwood Synergy® 3570 series cylinder mortice locks are made from quality materials to meet high durability and strength requirements.
Note:
High-purity zinc alloy material case with stainless steel forend plate and strike.
Stainless steel forend plate supplied in square end (standard) and optional round end.
High-grade spring steel material, corrosion-protected.
Standard door thickness 32 – 50mm.
Universal stainless steel strike suitable for a 4-hour fire rating.
Bolt stainless steel, fire-rated to 4 hours as standard.
Deadbolts are 19mmstainless steel.
Pricing is for the lock body only, oval barrel in the desired length is to be added.
Lead times under additional information.
Finish: Stainless Steel
Additional information
Lockwood
SCP Satin Chrome Plate
High purity die cast zinc alloy case
89mm and 127mm backset also available (89mm Made to order)
Stainless Steel
Lockwood 3570 Series Mortice Locks have been successfully tested up to 4 hours (depending on type of door set) on fire door assemblies in accordance with Australian Standard AS 1905.1-2005, Part, 1: Fire Resistant Door Sets.
All 3570 Series Cylinder Mortice Locks conform with level D3 (Durability) Australian Lock Standard (AS 4145.2 – 1993)
To ensure correct functioning of the dead latching mechanism and security for all locks, the clearance between the door and the frame should be 3mm. The dead latching will operate up to 8mm door clearance, however door clearances over 5mm are not recommended.
10 Year mechanical
Allow 11 working days from ordering, please note this is a made to order item, THEREFORE THIS FITTING IS NON-RETURNABLE.
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non resalable condition, custom item or special finish will not be returnable
Lockwood Synergy Series Mortice Locks Service Manual
Download3578 Series Holdback Lock Installation Instructions
Download3577 Series Dual Entry Lock Installation Instructions
Download3571 and 3573 Installation Instructions
Download3P70 Series Rebate Kit Installation Instructions
Download3570-419 Aluminium Door Fixing Tabs Installation Instructions
Download3570AF Series Routing Installation Instructions
Download3570 Series Installation Instructions
DownloadLockwood Synergy Mortice Locks Catalogue
DownloadQR Code
