Description
LAS8001 Drop Seal

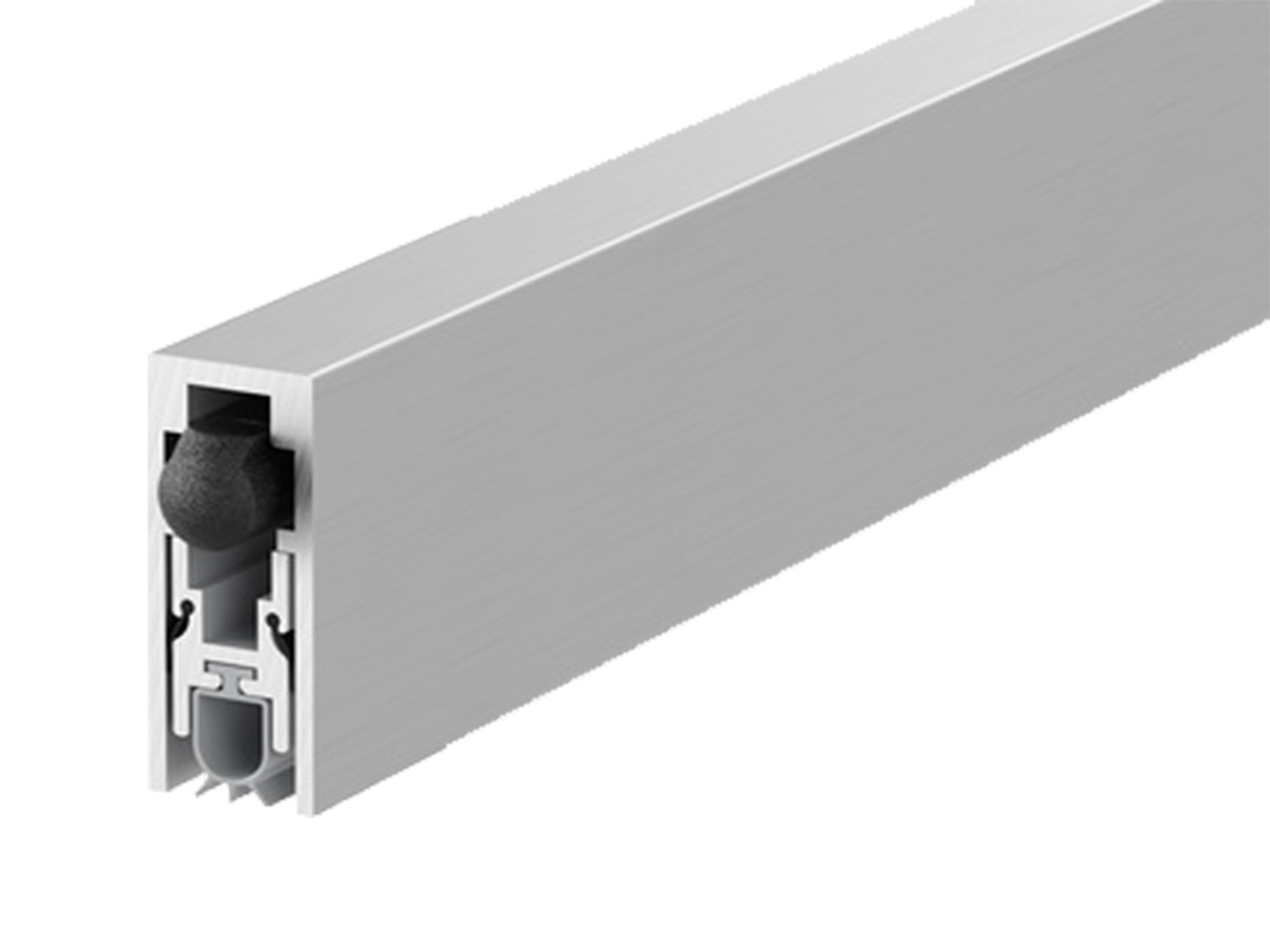

The Lorient LAS8001 Drop Seal is a face-fixed (or semi-morticed) aluminium automatic drop seal, featuring a silicon rubber gasket and internal fins. It is used to close the gap under single-sweep doors to maintain their acoustic, smoke, or energy efficiency performance. The seal incorporates a high-efficiency spring-loaded mechanism that extends the seal as the door swings shut and automatically retracts it as the door is opened by just a few centimeters.
Note:
An effective acoustic sealing solution that can easily be retrofitted to existing door assemblies.
Quickly and easily fitted to the bottom of the door.

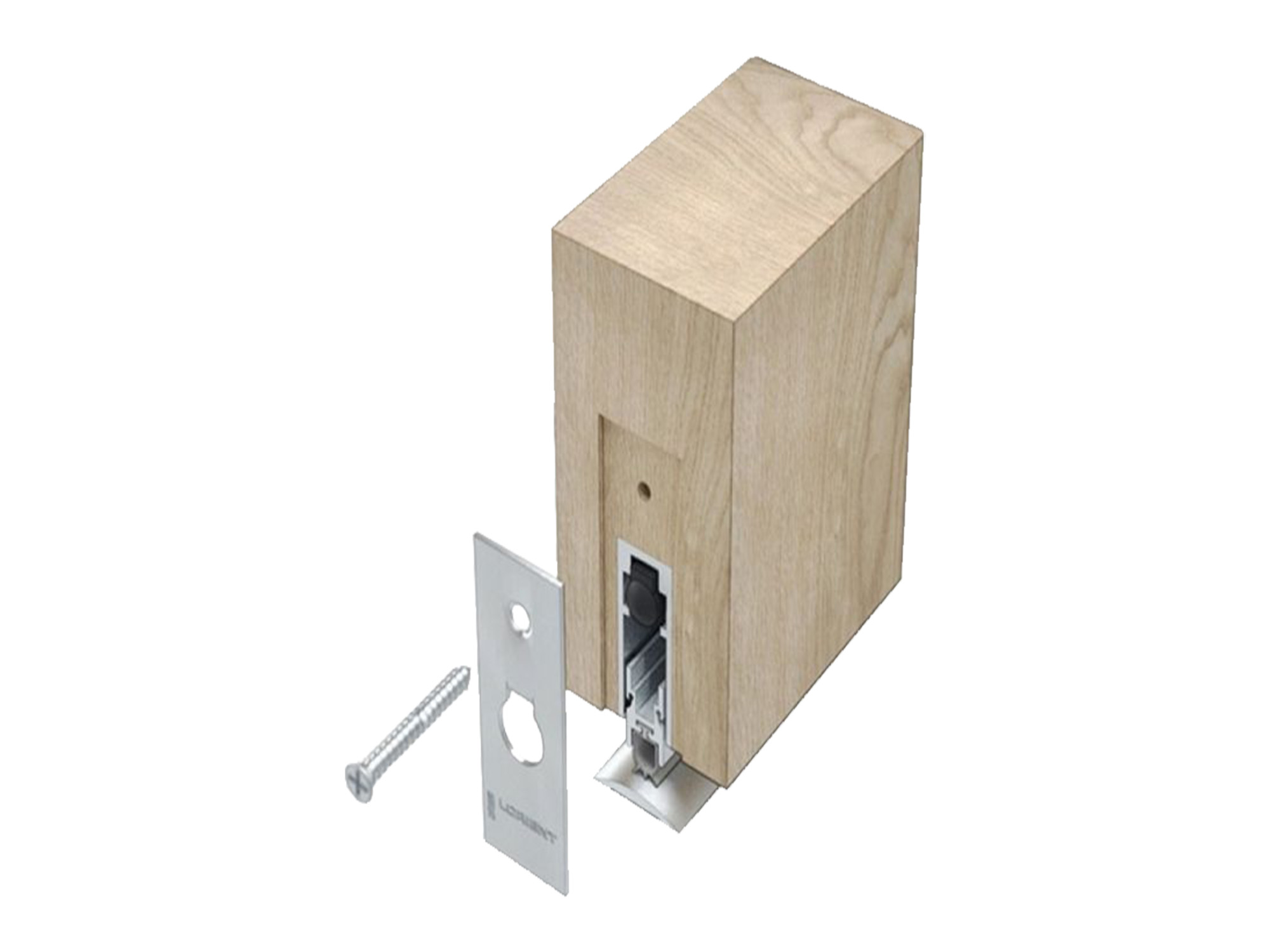

Can be fitted semi-morticed for a flush finish.
Suitable for left or right-hand doors.
Suitable for single or double doors.
Dual internal sealing fins enhance acoustic and smoke containment performance.
Supplied with a fire-rated silicone rubber gasket and aesthetic push-fit end caps.
Simple adjustment to suit varying door gap requirements.
Proven long-term reliability.
Accommodates and seals gaps from 1mm to 13mm (greater gaps can be sealed if the product is installed with a threshold plate.
Supplied with high-performance fire-rated silicone rubber gasket.
Made-to-order products allow 14 working days.

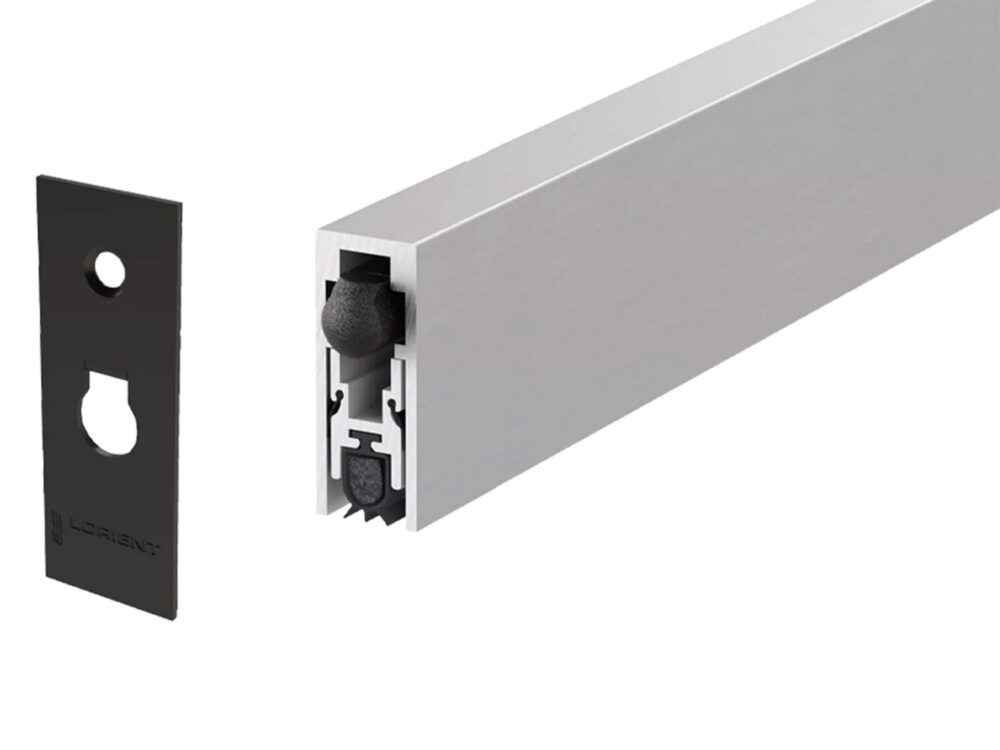

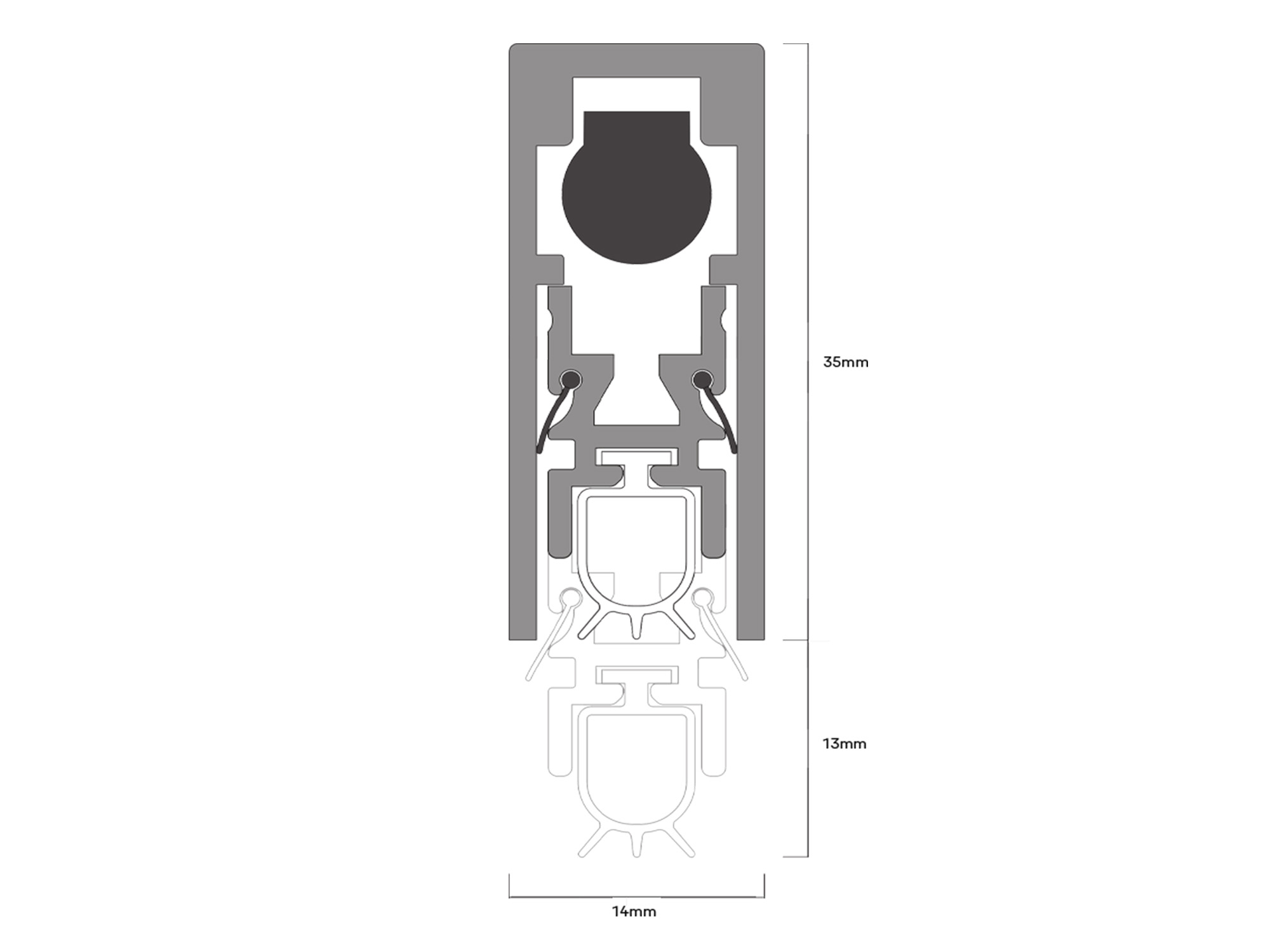

Fits into a 35 x 15mm deep groove, and retained in place with screw fixed stainless steel end plates.
Lead times under additional information.
Approvals:
Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.
Smoke: AS1530.7 smoke test data on AS6905 compliant smoke assemblies, Conforms with BCA Specification C3.4 smoke sealing requirements.
Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 40RW on appropriate rated assemblies.
Durability: Long-term mechanical test, completing 100,000 cycles without failure.
Lengths: 535mm, 635mm, 735mm, 820mm, 920mm, 1070mm, 1220mm, 1400mm,
Finish: Silver extrusion with black end caps
Lorient LAS8001 Drop Seals
$172.60 – $619.97Price range: $172.60 through $619.97 incl GST
Description
LAS8001 Drop Seal
The Lorient LAS8001 Drop Seal is a face-fixed (or semi-morticed) aluminium automatic drop seal, featuring a silicon rubber gasket and internal fins. It is used to close the gap under single-sweep doors to maintain their acoustic, smoke, or energy efficiency performance. The seal incorporates a high-efficiency spring-loaded mechanism that extends the seal as the door swings shut and automatically retracts it as the door is opened by just a few centimeters.
Note:
An effective acoustic sealing solution that can easily be retrofitted to existing door assemblies.
Quickly and easily fitted to the bottom of the door.
Can be fitted semi-morticed for a flush finish.
Suitable for left or right-hand doors.
Suitable for single or double doors.
Dual internal sealing fins enhance acoustic and smoke containment performance.
Supplied with a fire-rated silicone rubber gasket and aesthetic push-fit end caps.
Simple adjustment to suit varying door gap requirements.
Proven long-term reliability.
Accommodates and seals gaps from 1mm to 13mm (greater gaps can be sealed if the product is installed with a threshold plate.
Supplied with high-performance fire-rated silicone rubber gasket.
Made-to-order products allow 14 working days.
Fits into a 35 x 15mm deep groove, and retained in place with screw fixed stainless steel end plates.
Lead times under additional information.
Approvals:
Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.
Smoke: AS1530.7 smoke test data on AS6905 compliant smoke assemblies, Conforms with BCA Specification C3.4 smoke sealing requirements.
Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 40RW on appropriate rated assemblies.
Durability: Long-term mechanical test, completing 100,000 cycles without failure.
Lengths: 535mm, 635mm, 735mm, 820mm, 920mm, 1070mm, 1220mm, 1400mm,
Finish: Silver extrusion with black end caps
Additional information
Lorient
LAS8001/0535/S 535mm, LAS8001/0635/S 635mm, LAS8001/0735/S 735mm, LAS8001/0820/S 820mm, LAS8001/0920/S 920mm, LAS8001/1070/S 1070mm, LAS8001/1200/S 1200mm, LAS8001/1400/S 1400mm
Each length can be cut back to the next size down, for example the 735mm length can be cut back to 635mm.
Made-to-order product allow 14 working days.
These items are made to order, therefore are non-returnable
Lorient Drop Seal LAS8001 Datasheet
DownloadLorient Seal Catalogue
DownloadLorient Drop Seal LAS8002 Fitting Instructions
DownloadQR Code
