Union 2 Lever Rebated Locks
$139.74 – $143.16Price range: $139.74 through $143.16 incl GST
Description
Designed for timber residential doors, consider these mortice locks on rebated timber French doors.
Note:
Locked or unlocked by key from either side.
Easily reversible latch bolt.
Not suitable for bolt-through fixing.
Suitable for 12.5mm full rebated timber doors.
8mm Spindle.
Supplied keyed to a random key, but can be keyed alike by a Locksmith.
200 standard differs (M21H -M40H).
Suitable for doors up to 54mm thick.
Lead times under additional information.
Finish: SE Silver Enamel
Additional information
Union

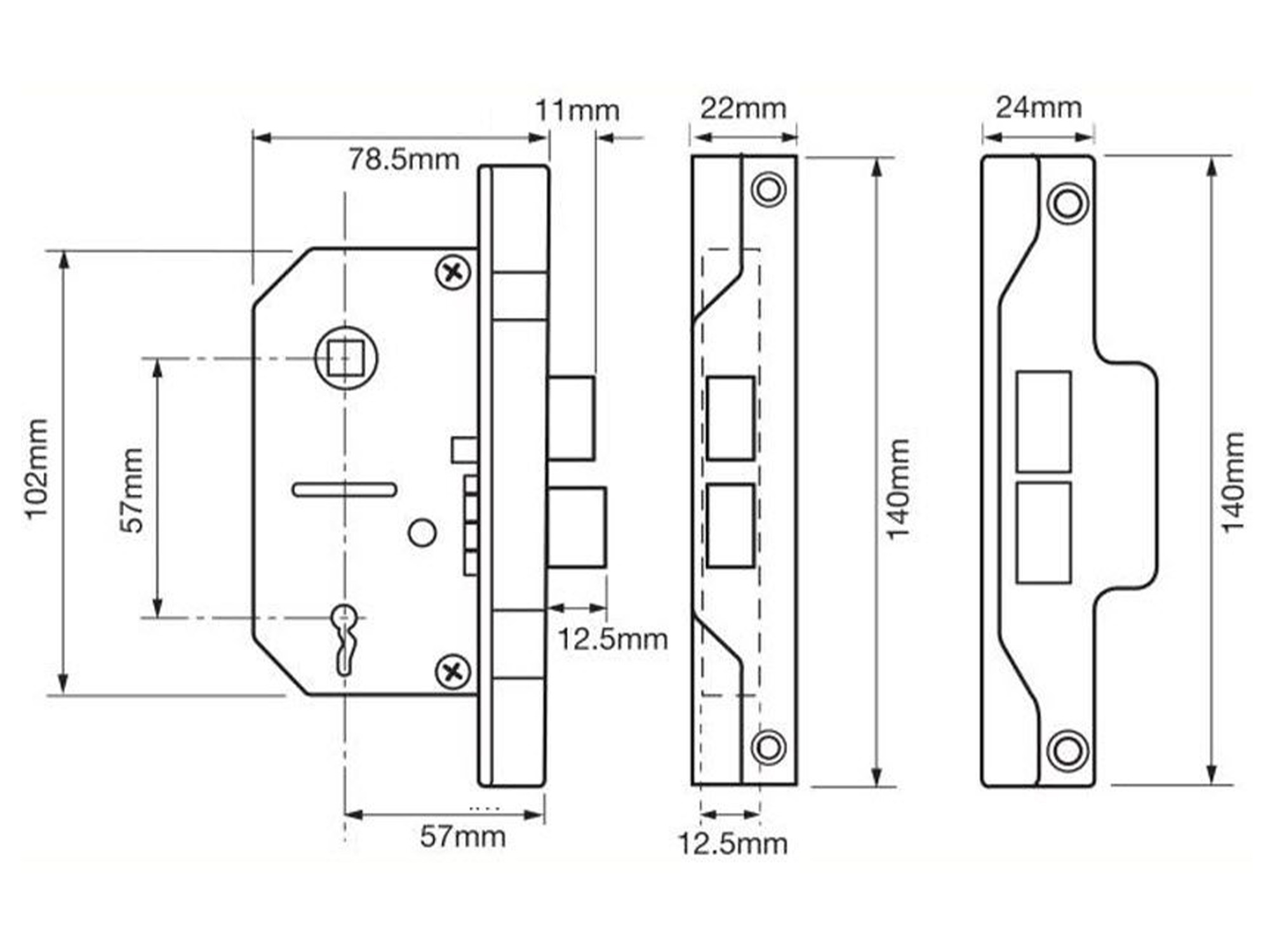

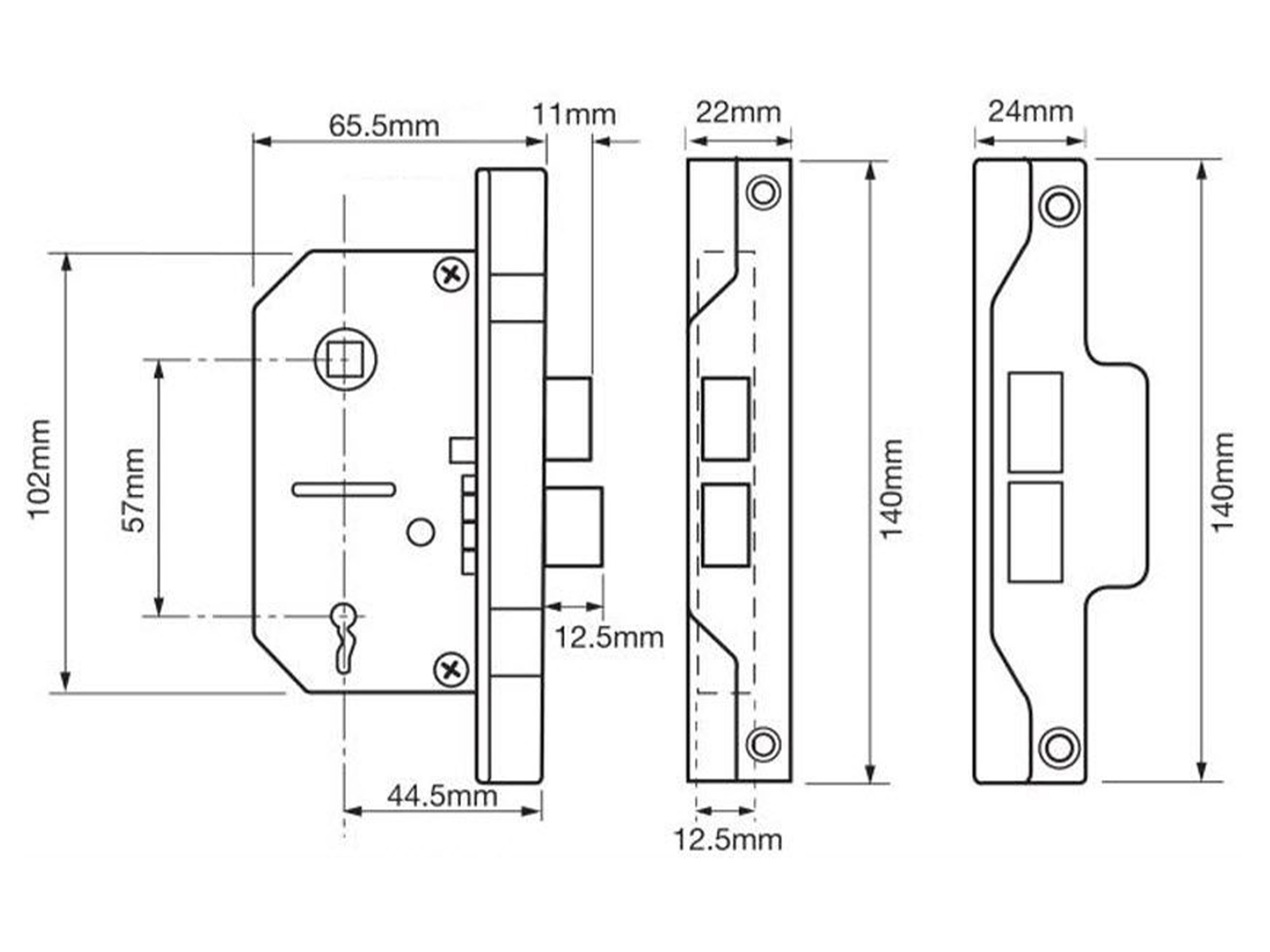

UY 2242 SE 2.50 44.5mm Backset, UY 2242 SE 3.00 57mm Backset
Not suitable for master keying
Timber Doors
Allow 2-5 Working days
PURCHASED TO ORDER ITEM, THEREFORE THESE FITTINGS ARE NON-RETURNABLE
Union U2242 Technical Flyer
DownloadUnion U2242 Technical Note
DownloadQR Code
