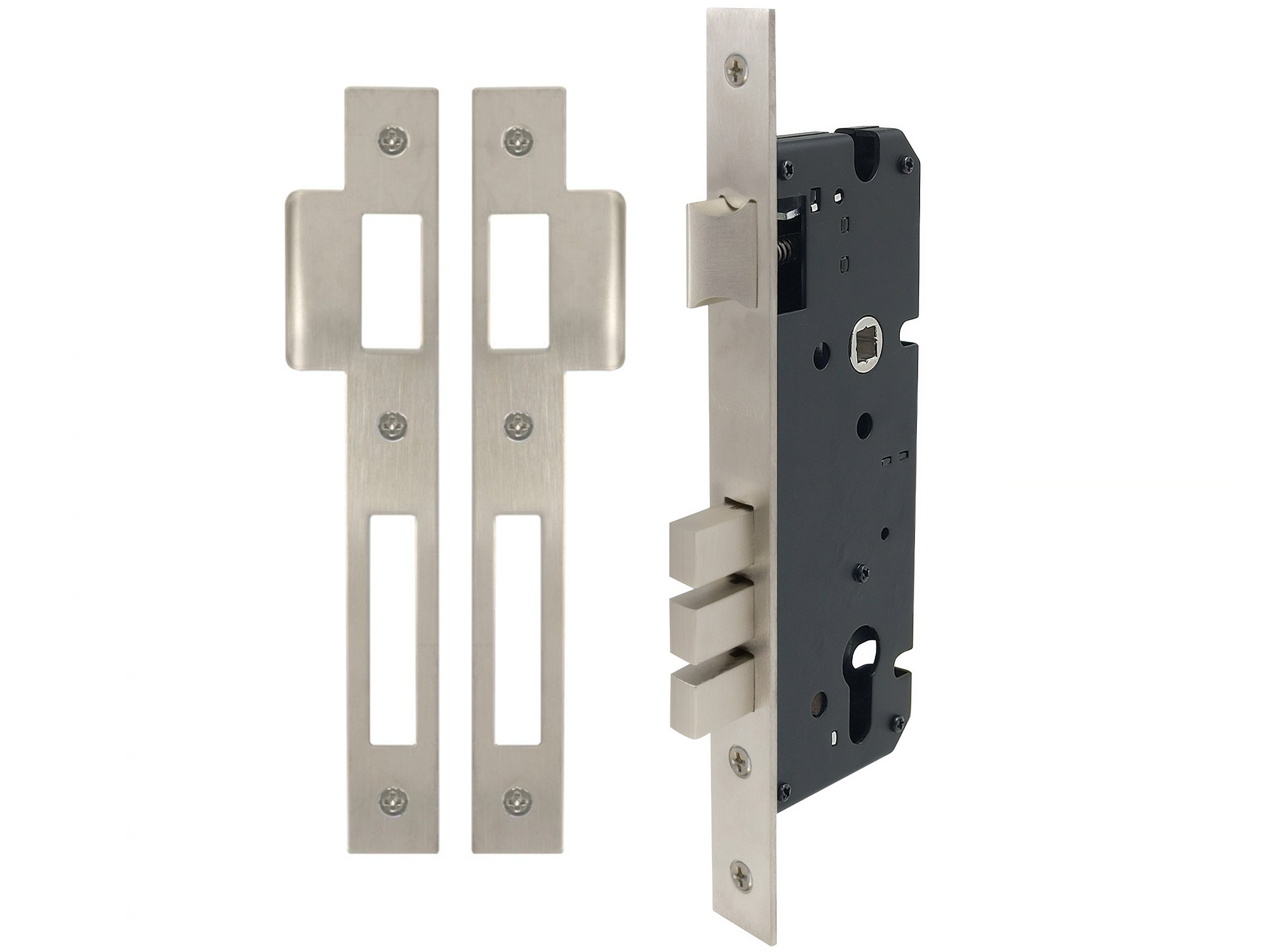

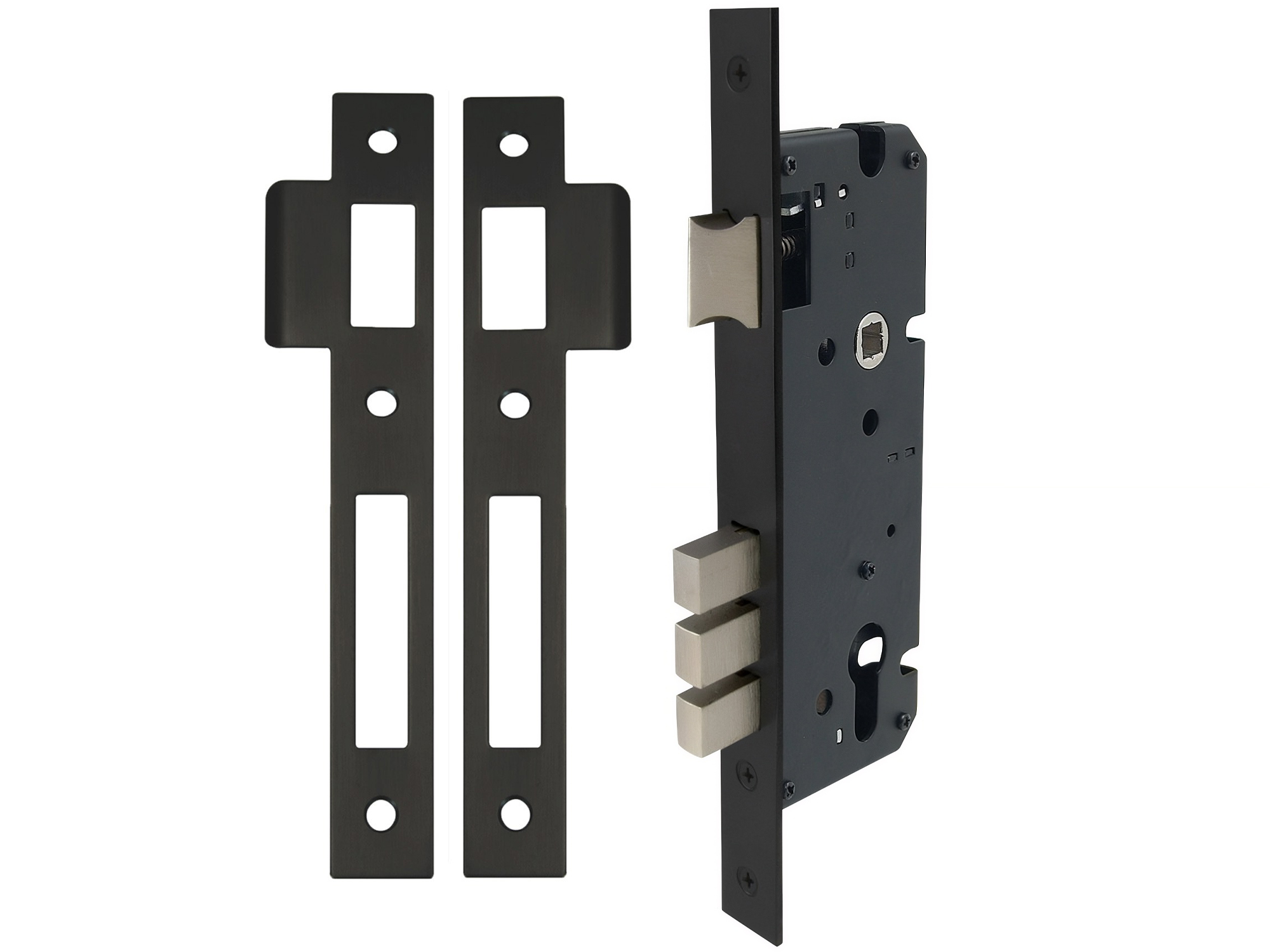

Available in 3 different finishes these 45mm backset euro profile mortice locks are suitable for internal or external residential doors.
Note:
Lever handles and a euro cylinder are required for the lock to work (select length and style to fit door width).
Lock latch direction can be changed without opening the lock case.
Two-stage bolt throw (bolt length extended 20mm).
Lock supplied with fixing screws and strike.
Rebate Kit available 1146.
Extended Strike Plate 1187.
Packer block for aluminum frame 8mm 1186, 10mm 1185.
Lead times are listed under additional information.
Finish: Stainless Steel, PC Powder Coated (please specify colour)
Additional information
Manufacturer
Windsor Architectural Hardware
Options
1142SS Stainless Steel, 1142PC Powder Coated
Material
Case Steel, Fore-end plate Stainless Steel
Backset
45mm
Spindle Size
8mm
Bolt Throw
20mm
Overall Case Depth
71mm
Returns Policy
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non-resalable condition, custom item or special finish will not be returnable
Lead Times
Allow 2 – 4 working days SS BLK
Allow 14 working days PC (Made to order item, therefore, they are non-returnable)
Windsor 45mm Backset Euro Mortice Locks
$115.54 – $158.27 incl GST
Description
Available in 3 different finishes these 45mm backset euro profile mortice locks are suitable for internal or external residential doors.
Note:
Lever handles and a euro cylinder are required for the lock to work (select length and style to fit door width).
Lock latch direction can be changed without opening the lock case.
Two-stage bolt throw (bolt length extended 20mm).
Lock supplied with fixing screws and strike.
Rebate Kit available 1146.
Extended Strike Plate 1187.
Packer block for aluminum frame 8mm 1186, 10mm 1185.
Lead times are listed under additional information.
Finish: Stainless Steel, PC Powder Coated (please specify colour)
Additional information
Windsor Architectural Hardware
1142SS Stainless Steel, 1142PC Powder Coated
Case Steel, Fore-end plate Stainless Steel
45mm
8mm
20mm
71mm
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non-resalable condition, custom item or special finish will not be returnable
Allow 2 – 4 working days SS BLK
Allow 14 working days PC (Made to order item, therefore, they are non-returnable)
Windsor Catalogue
DownloadQR Code
