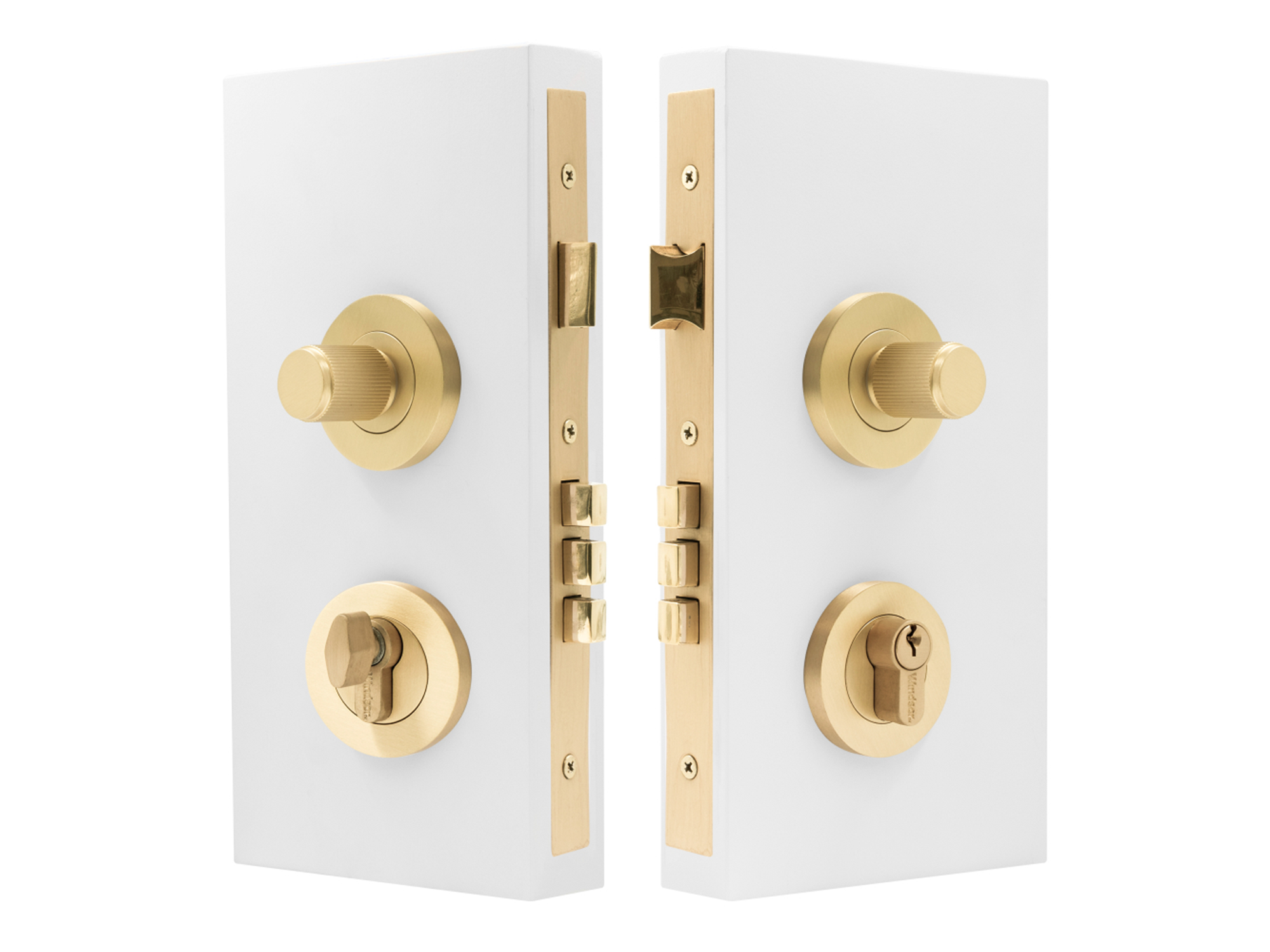

Available in 6 different finishes these 1552 double turn-locks with round escutcheons are designed to be used on entry doors and are a better alternative than using a roller lock which is prone to blowing open.
Note: Supplied with 60mm backset lock case.
Latch retracts with key.
Easy to operate, simply turn the snib to open the door.
The lock latch direction can be changed without opening the lock case.
Two-stage bolt throw.
Lock supplied with fixing screws, euro cylinder screw,114 euro cylinder, and turn, strike plate, 1 x pair euro keyhole escutcheon, and 1 x pair escutcheons with turns.
Escutcheon and turns with an 8mm spindle.
Rebate Kit available 1146.
Extended Strike plate available 1187 (L/H) or (R/H).
Lead times are listed under additional information.
Finishes Available: BN Brushed Nickel, DRB Dark Roman Brass, GN Graphite Nickel, BLK Matt Black, MSB Matt Satin Brass, RB Roman Brass
Additional information
Manufacturer
Windsor Architectural Hardware
Options
1552BN Brushed Nickel, 1552DRB Dark Roman Brass, 1552GN Graphite Nickel, 1552BLK Matt Black, 1552MSB Matt Satin Brass, 1552RB Roman Brass
Backset
60mm
Overall Case Depth
86mm
Latch Throw
20mm
Spindle Size
8mm
Lock Type
Euro 85mm
Euro Cylinder Length
70mm
Cylinder Type
5 Pin
Key Profile
C4
Lead Times
Allow 5 – 7 working days for Standard finishes BN, BLK, GN, MSB
Allow 14 working days for Made to order finish RB, DRB (Special order therefore Non-Returnable)
Returns Policy
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non-resalable condition, custom item or special finish will not be returnable
Windsor Round Double Locksets Linear Knurled
$402.93 – $728.38 incl GST
Description
Available in 6 different finishes these 1552 double turn-locks with round escutcheons are designed to be used on entry doors and are a better alternative than using a roller lock which is prone to blowing open.
Note:
Supplied with 60mm backset lock case.
Latch retracts with key.
Easy to operate, simply turn the snib to open the door.
The lock latch direction can be changed without opening the lock case.
Two-stage bolt throw.
Lock supplied with fixing screws, euro cylinder screw,114 euro cylinder, and turn, strike plate, 1 x pair euro keyhole escutcheon, and 1 x pair escutcheons with turns.
Escutcheon and turns with an 8mm spindle.
Rebate Kit available 1146.
Extended Strike plate available 1187 (L/H) or (R/H).
Lead times are listed under additional information.
Finishes Available: BN Brushed Nickel, DRB Dark Roman Brass, GN Graphite Nickel, BLK Matt Black, MSB Matt Satin Brass, RB Roman Brass
Additional information
Windsor Architectural Hardware
1552BN Brushed Nickel, 1552DRB Dark Roman Brass, 1552GN Graphite Nickel, 1552BLK Matt Black, 1552MSB Matt Satin Brass, 1552RB Roman Brass
60mm
86mm
20mm
8mm
Euro 85mm
70mm
5 Pin
C4
Allow 5 – 7 working days for Standard finishes BN, BLK, GN, MSB
Allow 14 working days for Made to order finish RB, DRB (Special order therefore Non-Returnable)
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non-resalable condition, custom item or special finish will not be returnable
