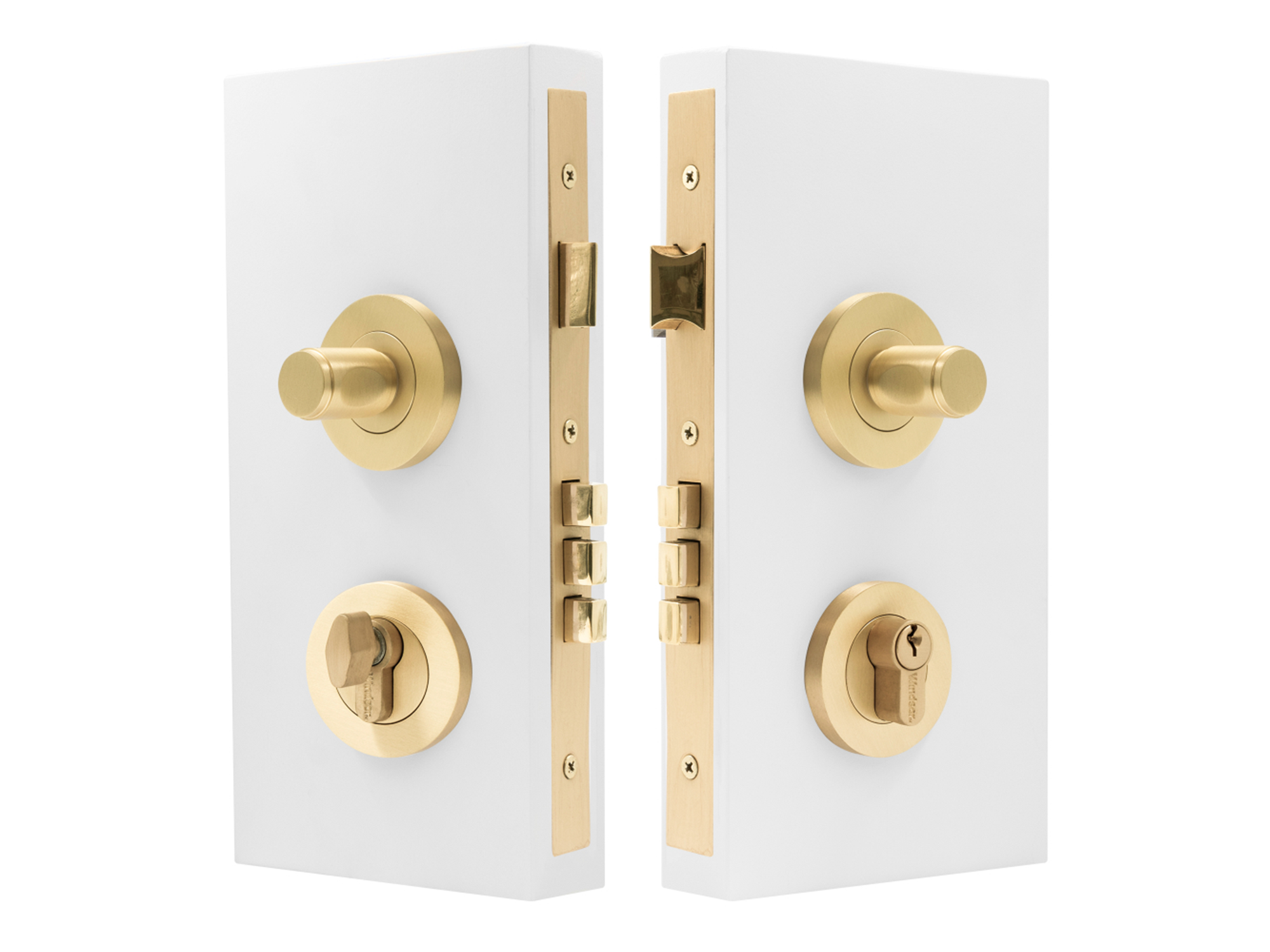

Available in 7 different finishes these 1550 double turn-locks with round escutcheons are designed to be used on entry doors and are a better alternative than using a roller lock which is prone to blowing open.
Note: Supplied with 60mm backset lock case.
Latch retracts with key.
Easy to operate, simply turn the snib to open the door.
The lock latch direction can be changed without opening the lock case.
Two-stage bolt throw.
Lock supplied with fixing screws, euro cylinder screw,114 euro cylinder, and turn, strike plate, 1 x pair euro keyhole escutcheon, and 1 x pair escutcheons with turns.
escutcheon and turns with an 8mm spindle.
Rebate Kit available 1146.
Extended Strike plate available 1187 (L/H) or (R/H).
Lead times are listed under additional information.
Finishes Available: Brushed Nickel, Dark Roman Brass, Graphite Nickel, Matt Black, Matt Satin Brass, Roman Brass, Powder Coat (please specify colour)
Additional information
Manufacturer
Windsor Architectural Hardware
Options
1550BN Brushed Nickel, 1550DRB Dark Roman Brass, 1550GN Graphite Nickel, 1550BLK Matt Black, 1550MSB Matt Satin Brass, 1550RB Roman Brass, 1550PC Powder Coat (Please specify colour)
Backset
60mm
Overall Case Depth
86mm
Latch Throw
20mm
Spindle Size
8mm
Lock Type
Euro 85mm
Euro Cylinder Length
70mm
Cylinder Type
5 Pin
Key Profile
C4
Lead Times
Standard finish BN, BLK, GN, MSB 2 – 5 Working Days
Made to order finish PC, RB, DRB 14 Working days (Special order therefore Non-Returnable)
Returns Policy
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non-resalable condition, custom item or special finish will not be returnable
Windsor Round Double Turn Locksets Plain
$402.93 – $728.38 incl GST
Description
Available in 7 different finishes these 1550 double turn-locks with round escutcheons are designed to be used on entry doors and are a better alternative than using a roller lock which is prone to blowing open.
Note:
Supplied with 60mm backset lock case.
Latch retracts with key.
Easy to operate, simply turn the snib to open the door.
The lock latch direction can be changed without opening the lock case.
Two-stage bolt throw.
Lock supplied with fixing screws, euro cylinder screw,114 euro cylinder, and turn, strike plate, 1 x pair euro keyhole escutcheon, and 1 x pair escutcheons with turns.
escutcheon and turns with an 8mm spindle.
Rebate Kit available 1146.
Extended Strike plate available 1187 (L/H) or (R/H).
Lead times are listed under additional information.
Finishes Available: Brushed Nickel, Dark Roman Brass, Graphite Nickel, Matt Black, Matt Satin Brass, Roman Brass, Powder Coat (please specify colour)
Additional information
Windsor Architectural Hardware
1550BN Brushed Nickel, 1550DRB Dark Roman Brass, 1550GN Graphite Nickel, 1550BLK Matt Black, 1550MSB Matt Satin Brass, 1550RB Roman Brass, 1550PC Powder Coat (Please specify colour)
60mm
86mm
20mm
8mm
Euro 85mm
70mm
5 Pin
C4
Standard finish BN, BLK, GN, MSB 2 – 5 Working Days
Made to order finish PC, RB, DRB 14 Working days (Special order therefore Non-Returnable)
A restocking fee on items returned will apply, a minimum of $10.00 or 20%. Goods in a non-resalable condition, custom item or special finish will not be returnable
